5. System Setup and Operations
Interface and Input Signal Option
CP 3072 User Manual 45

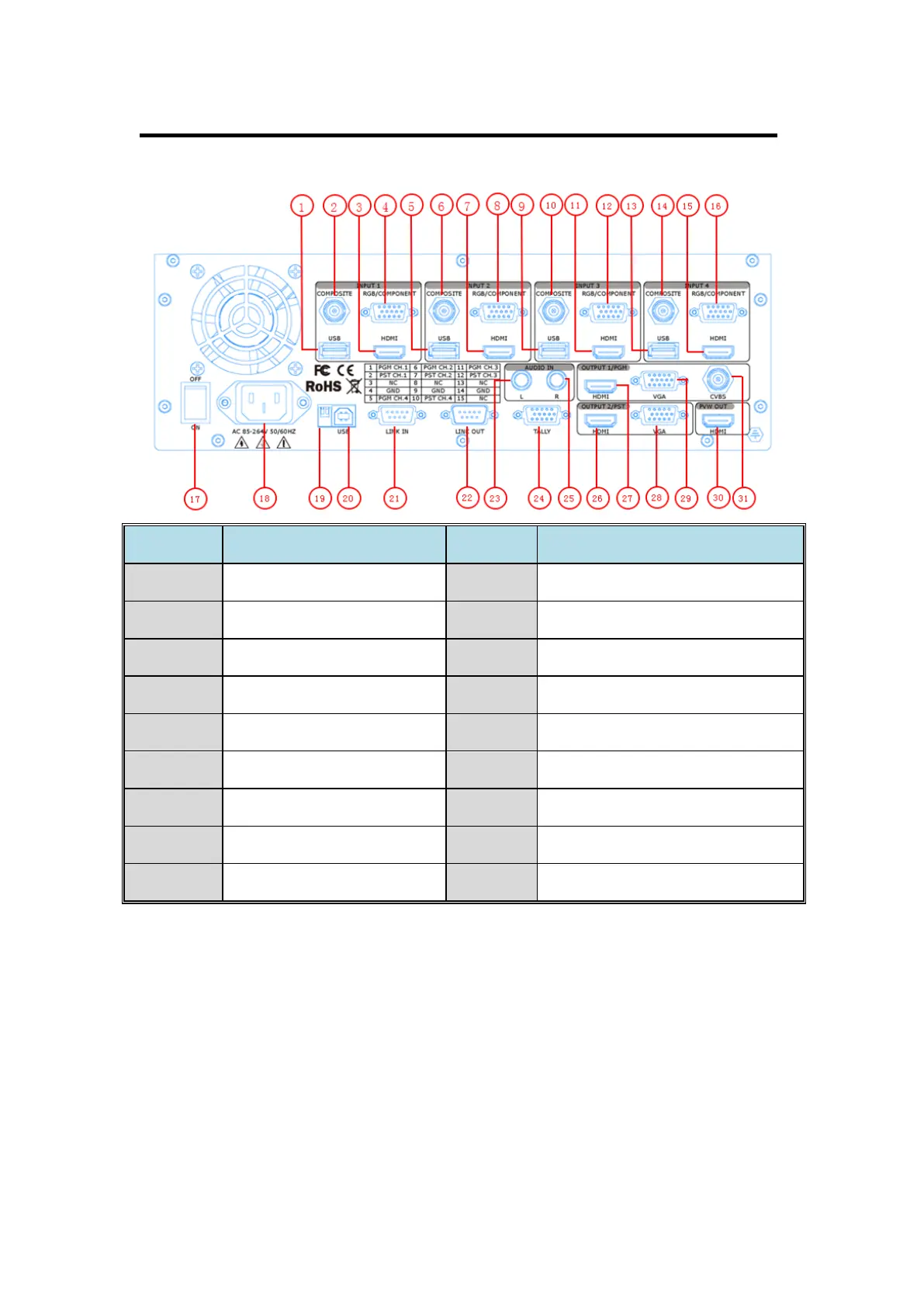

Interface and Input Signal Option
NO
INTERFACE
NO
INTERFACE
1. 5. 9. 13
USB input USB-B port
23. 25
Audio input port
2. 6. 10. 14
CVBS input BNC port
24
TALLY light
3. 7. 11. 15
HDMI/3G-SDI input
27
HDMI program output HDMI-A port
4. 8. 12. 16
VGA input DB15 port
29
VGA program output DB15 port
17
Switch
31
CVBS program output BNC port
18
Power IEC-3
26
HDMI preview output HDMI-A port
19
Dial Switch
28
VGA preview output DB15 port
20
USB Interface
30
HDMI PVW output HDMI-A port
21. 22
RS-232 Interface
27. HDMI program output, used to connect to the display device, video
processor or matrix.
29. VGA program output, connect to monitor or projector which with VGA
interface. Support the following output resolutions:
1024×768@60, 1280×768@60, 1280×1024@60, 1440×900@60,
1920×1080@60.
31. CVBS Program output, connect to TV, and the device with CVBS input.
