RGBlink CP 3072 User Manual

2. Hardware Orientation

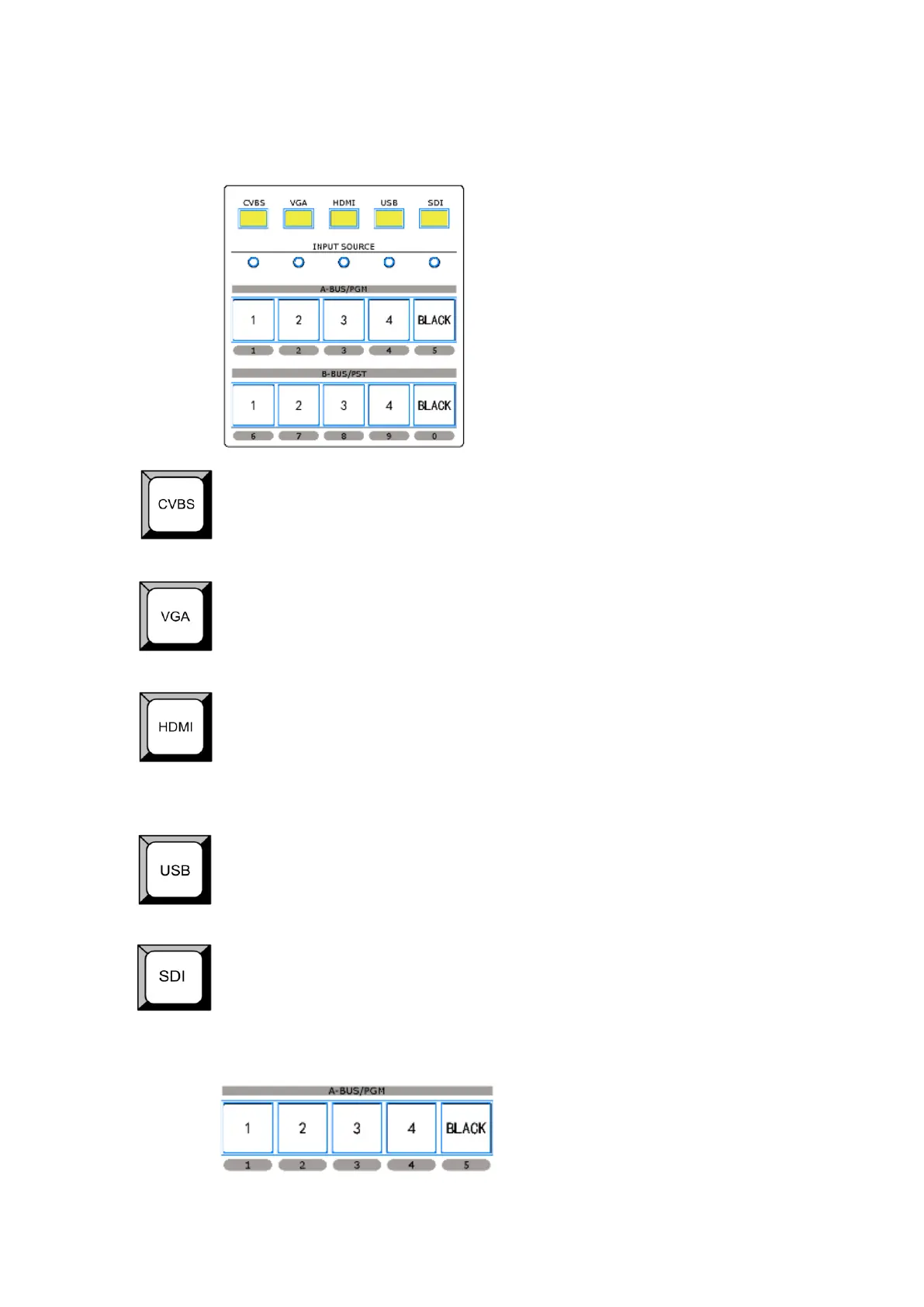

CP 3072 Front Panel
CP 3072 User Manual 31
Input Source Edit Area
CVBS signal source button, push the button, the signal will be edited to
preview channel.
VGA signal source button, push the button, the signal will be edited to
preview channel.
HDMI signal source button, push the button, the signal will be edited to
preview channel. For CP 3072S, the OLED screen will remind: CP 3072S!
There is no HDMII input module, Any question, please contact: 4008-592-114
USB signal source button, push the button, the signal will be edited to
preview channel.
SDI signal source button, push the button, the signal will be edited to
preview channel. For CP 3072, the OLED screen will remind: CP 3072
standard version! There is no SDI input module, Any question, please contact:
4008-592-114

RGBlink CP 3072 Specifications

General

Brand	RGBlink
Model	CP 3072
Category	Control Panel
Language	English
