14
Z-axis
pulse
Output
port
this pin
Pulse signal
output
port
Z-axis drive pulse
signal output port, the
output voltage ≧ 3V
drive current≦ 8mA
direction
signal
output port
Z-axis direction of the
drive signal output port
output voltage ≧ 3V
drive current≦ 8mA
Shield
connection
port
Z-axis drive signal
output voltage line
terminal shield
Do not
impose
voltage on
this pin

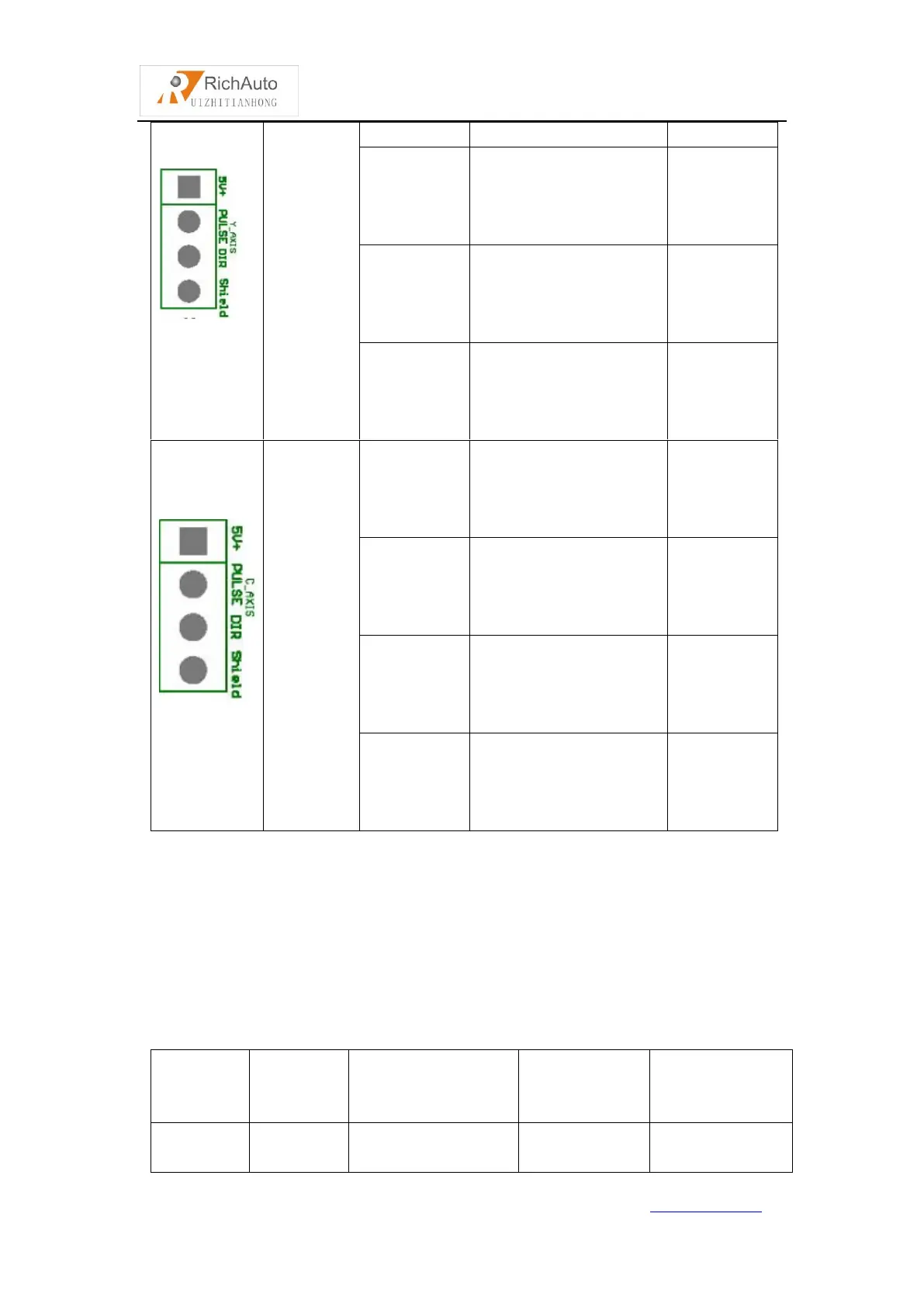

J5
C-axis
pulse
Output
port
5V signal
output port
C-axis drive common
anode power supply
terminal 5V output
Do not
impose
voltage on
this pin
Pulse signal
output
port
C-axis drive pulse
signal output port, the
output voltage ≧ 3V
drive current≦ 8mA
direction
signal
output port
C-axis direction of the
drive signal output port
output voltage ≧ 3V
drive current≦ 8mA
Shield
connection
port
C-axis drive signal
output voltage line
terminal shield
Do not
impose
voltage on
this pin
Port label
Port
definition
Pin Definition
Pin functions
and
parameters
Notes
J8
X1:X_se：X origin
sensor Signal Input
X origin
sensor signal
Input low level
signals
