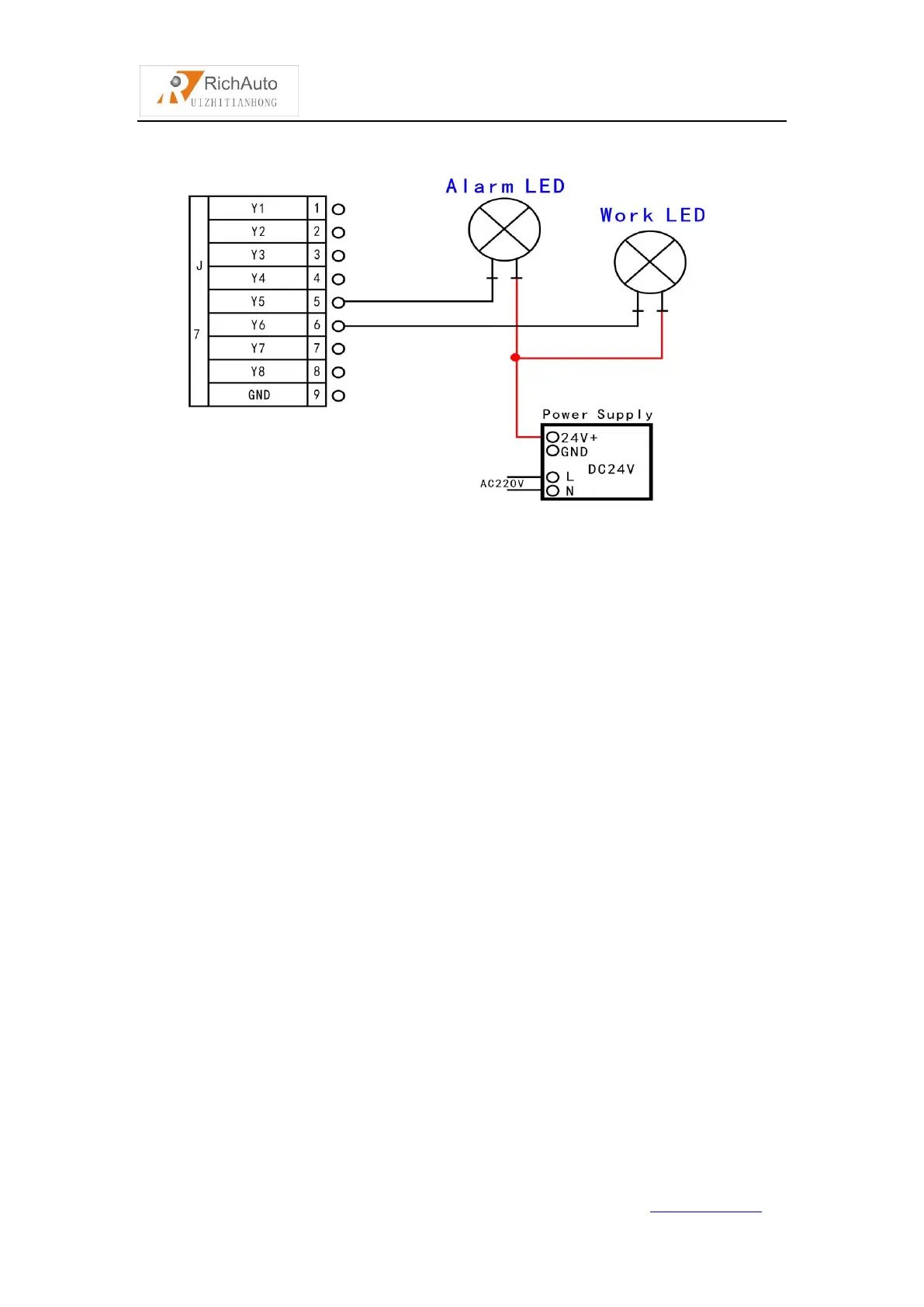

J7 Output port Y5-Alarm LED and Y6-WORK LED:
You can connect the machine with the control system when the above setting is over.
3.4 Commissioning of the Machine and Control System
1） After turn on the power, users can manually move each axis and confirm the
direction. If the movement direction and definition direction are opposite, users
can change the motor phase sequence.
2） According to the original location of the machine coordinates, users can enter into
menu-machine setup-home setup- home direction to reset it.
3） Double-press “menu”-manual voltage setup（the upper arrows stand for input
voltage）to check whether the home switch is working.
The machine is in good connection if all the above setting is ok.
4．Menu Description
4.1 Menu category
To Next Page
