22
the screen displays Fn—the speed before spindle stop.
3 lines,8 status

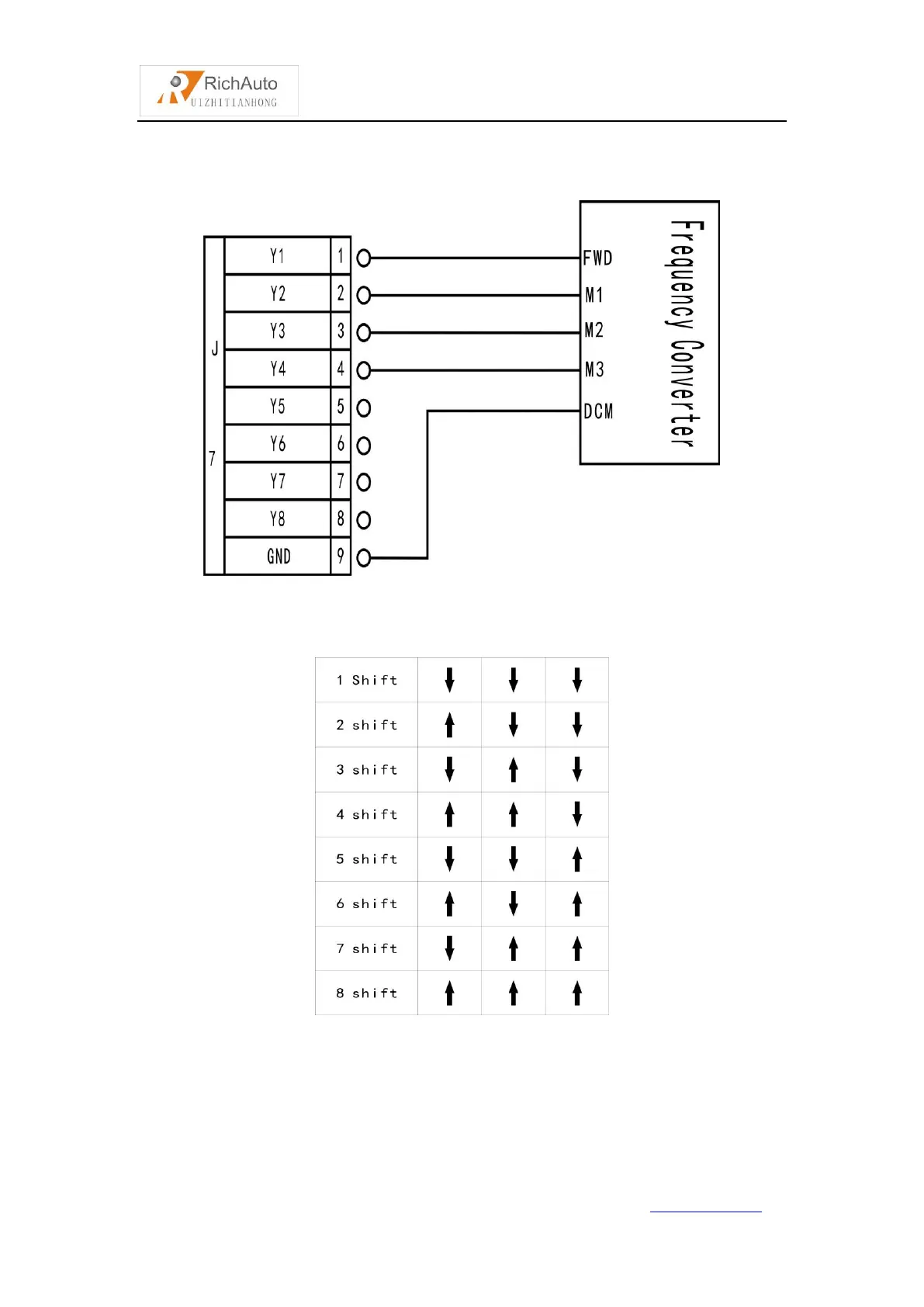

the corresponding spindle setting is:
PS: FWD and DCM has Connected in Parallel in some inverters, plesae do not need to
connect Y1 (S0) in such situations, you only need to connect DCM with GND of
interface board, without having to reset the spindle gear.
