Ricoh Aficio MP 201SPF User Manual

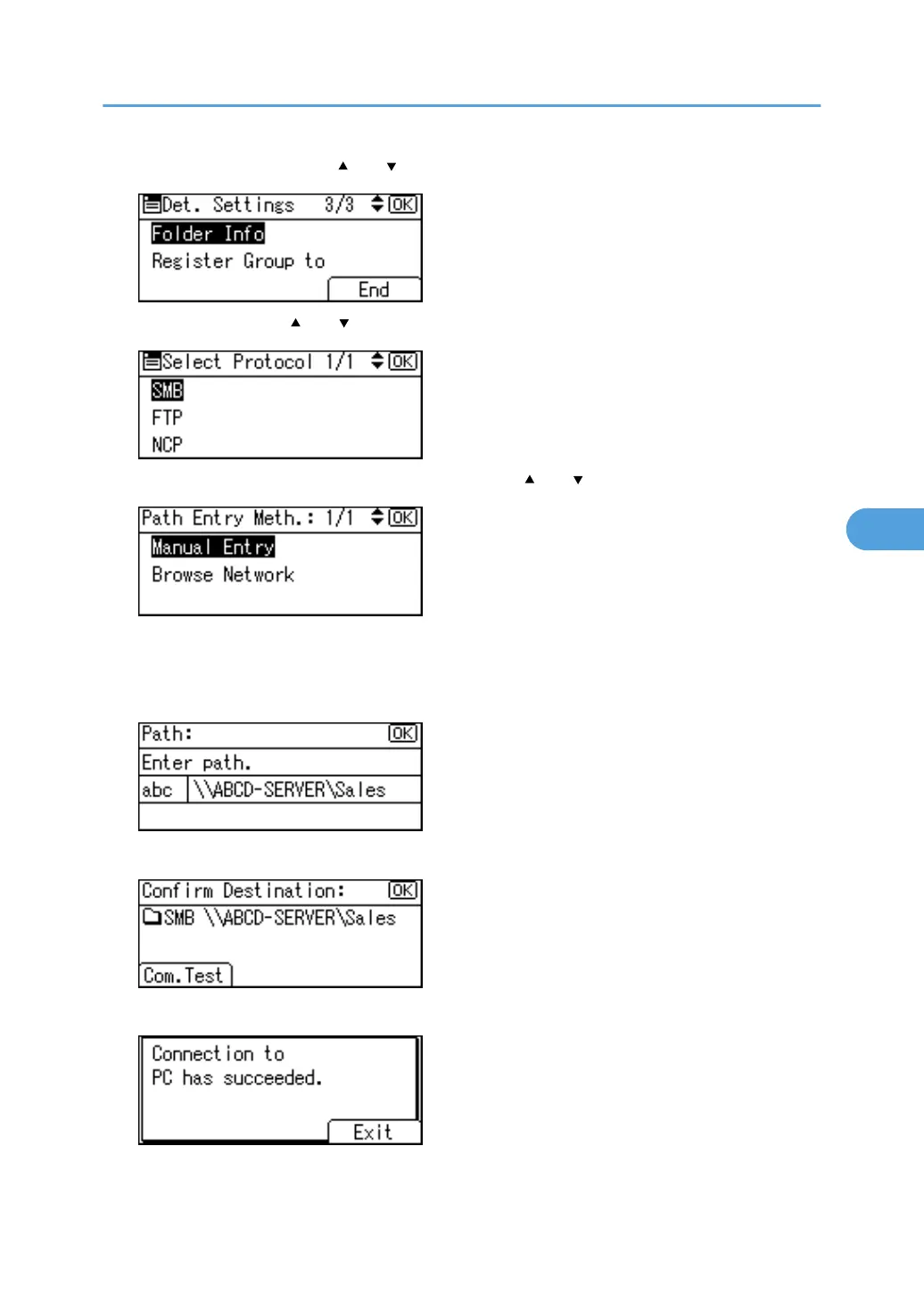

9. Select [Folder Info] using [ ] or [ ], and then press the [OK] key.
10. Select [SMB] using [ ] or [ ], and then press the [OK] key.
11. Select [Manual Entry] or [Browse Network] using [ ] or [ ], and then press the [OK] key.
To specify a folder, you can either enter the path manually or locate the folder by browsing the
network. See "Locating the folder manually" and "Locating the folder using Browse Network".
12. Specify the folder.
13. Press [Com.Test] to check the path is set correctly.
14. Press [Exit].
Registering Folders
291
5

Ricoh Aficio MP 201SPF Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Scan Resolution	600 dpi
Fax Speed	33.6 Kbps
Paper Capacity	250 sheets
ADF Capacity	50 sheets
Max Paper Size	A4
Connectivity	USB 2.0, Ethernet
Duplex Printing	Manual
Dimensions	485 x 450 x 481 mm
Copy Speed	20 cpm
Print Speed	20 ppm
