Ricoh Aficio MP 201SPF User Manual

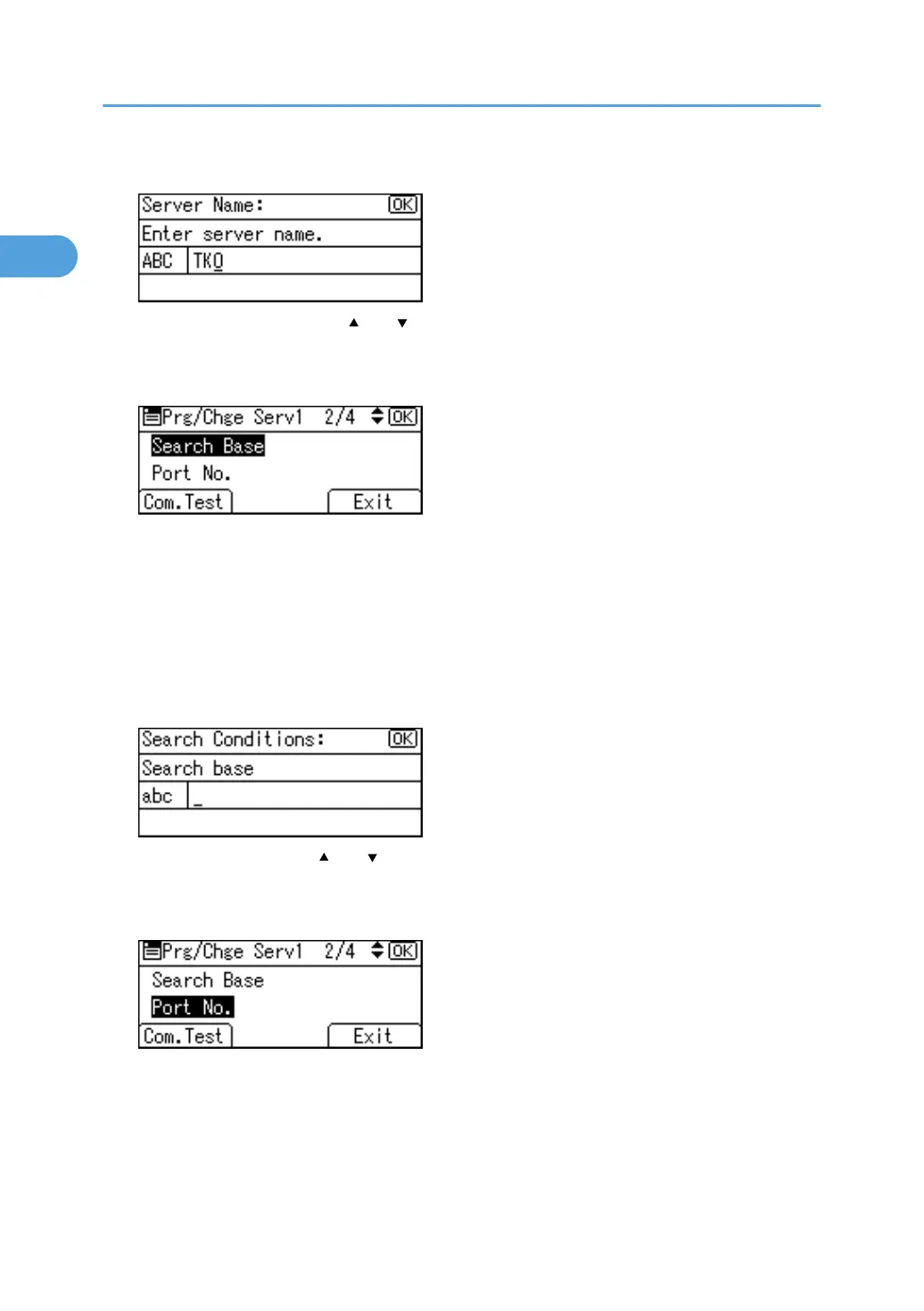

10. Enter the server name, and then press the [OK] key.
11. Select [Search Base] using [ ] or [ ], and then press the [OK] key.
Select the root folder to start the search from e-mail addresses registered in the selected folder which
is the search targets.
12. Enter the search base, and then press the [OK] key.
For example, if the search target is the sales department of ABC company, enter "dc=sales department,
o=ABC". (In this example, the description is for an active directory. "dc" is for the organization unit,
and "o" is for the company.)
Search base registration may be required depending on your server environment. When registration
is required, unspecified searches will result in error.
Check your server environment and enter any required specifications.
13. Select [Port No.] using [ ] or [ ], and then press the [OK] key.
Specify the port number for communicating with the LDAP server. Specify a port that is compliant with
your environment.
1. System Settings
48
1

Ricoh Aficio MP 201SPF Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Scan Resolution	600 dpi
Fax Speed	33.6 Kbps
Paper Capacity	250 sheets
ADF Capacity	50 sheets
Max Paper Size	A4
Connectivity	USB 2.0, Ethernet
Duplex Printing	Manual
Dimensions	485 x 450 x 481 mm
Copy Speed	20 cpm
Print Speed	20 ppm
