Photoconductor Unit (PCU)
D017/D018/D019/D020 3-28 SM

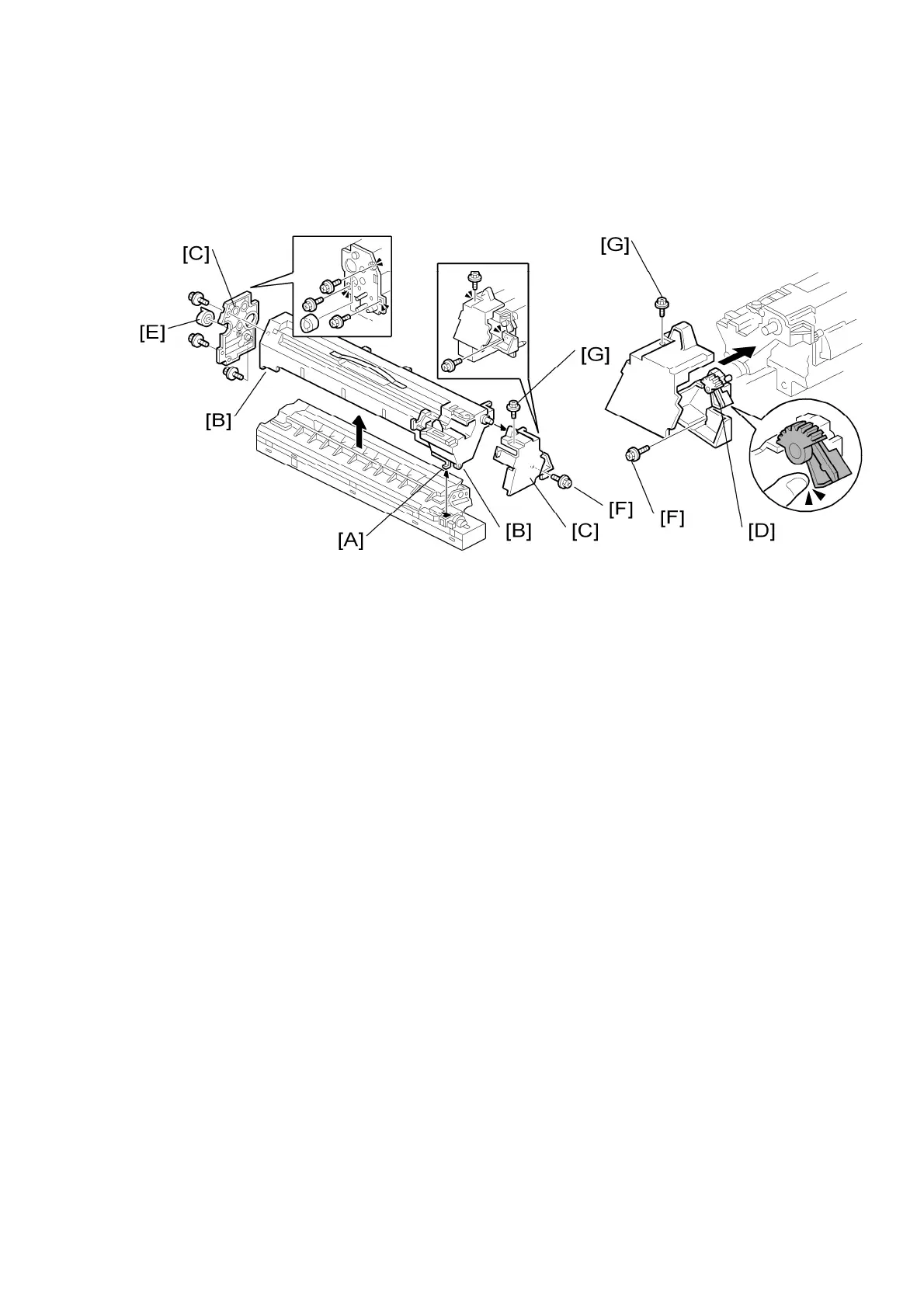

PCU Reassembly
Reassemble the PCU in this order:
1. Connect the pawl [A]
2. Frame pawls [B], front and rear
3. Set the rear cover and front cover [C]
Never touch the lever [D] until after the top screw has been fastened.
4. Screws ( x3), coupling x1 [E]
Never press down on the top of the PCU when you reattach the rear or front cover.
5. Lower screw ( x1) [F]
Always install the lower screw first to maintain the correct gap between the rollers.
6. Top screw ( x1) [G]
Lift and lower the lever [D] to make sure that the shutter opens fully and operates
smoothly.
