Paper Feed
D017/D018/D019/D020 6-66 SM

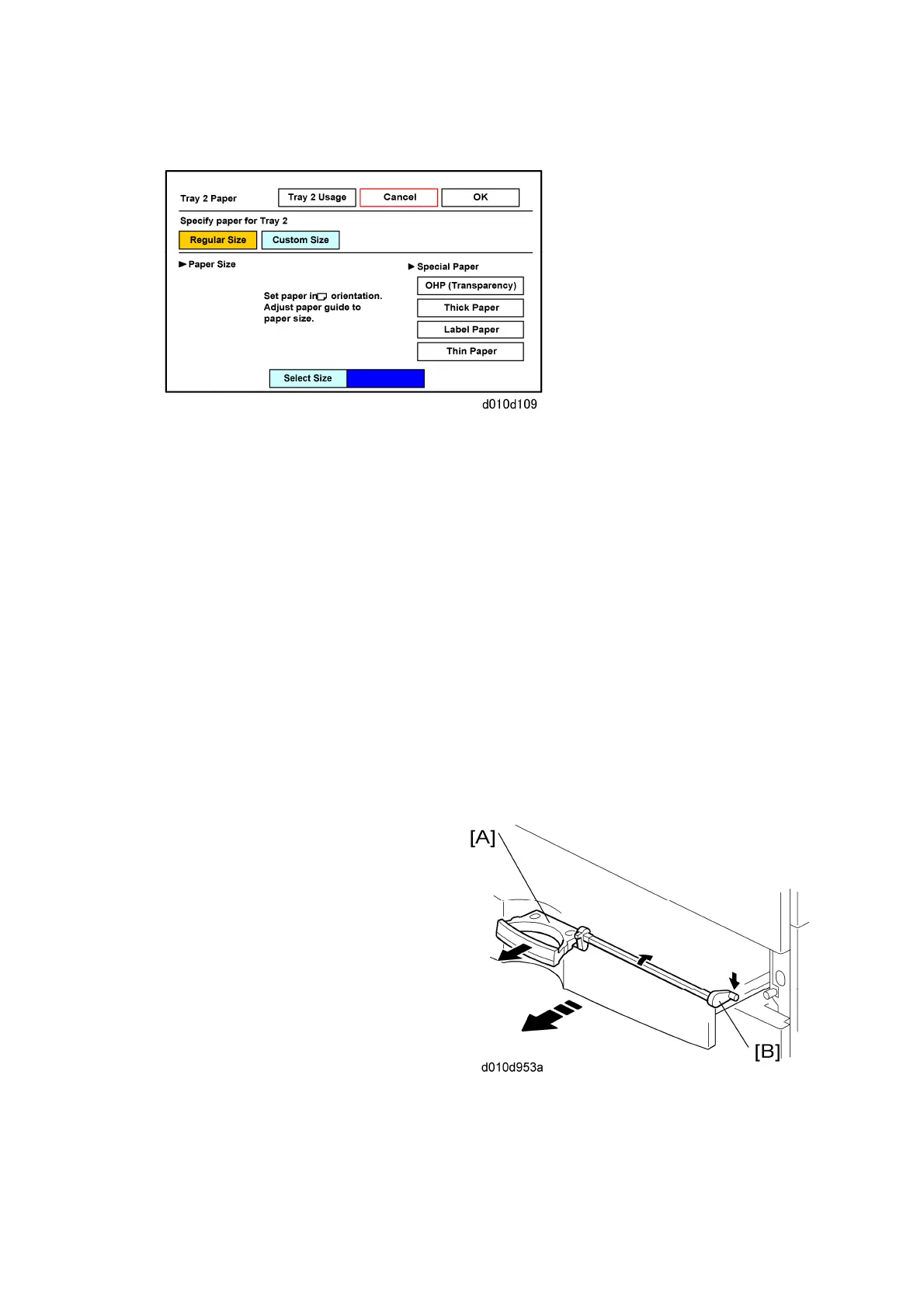

After selecting the special paper type, the fusing temperature and transfer roller current
will be changed as follows.
2. Fusing temperature (when thick paper is selected):
Current operation temperature + 15 °C
3. Transfer roller current:
A3 width (11”): 14muA
B4 width (10”): 15muA
A4 width (8.5”): 17muA
A5 width (5.5”): 20muA
Note that for the by-pass tray, the fusing and transfer conditions for special paper are also
applied if the user uses thick (non-standard) mode.
6.11.12 TRAY LOCK MECHANISM
A lock mechanism in each tray prevents it
from coming out accidentally when the
machine is moved.
Pulling on the sides of a tray will not
open it. A tray can be opened only by
pulling on its handle to release the tray
for opening.
Pulling the handle [A] lowers the lock
lever [B] and releases the lock so the
tray will open.
