MECHANICAL COMPONENT LAYOUT
B391 2 SM

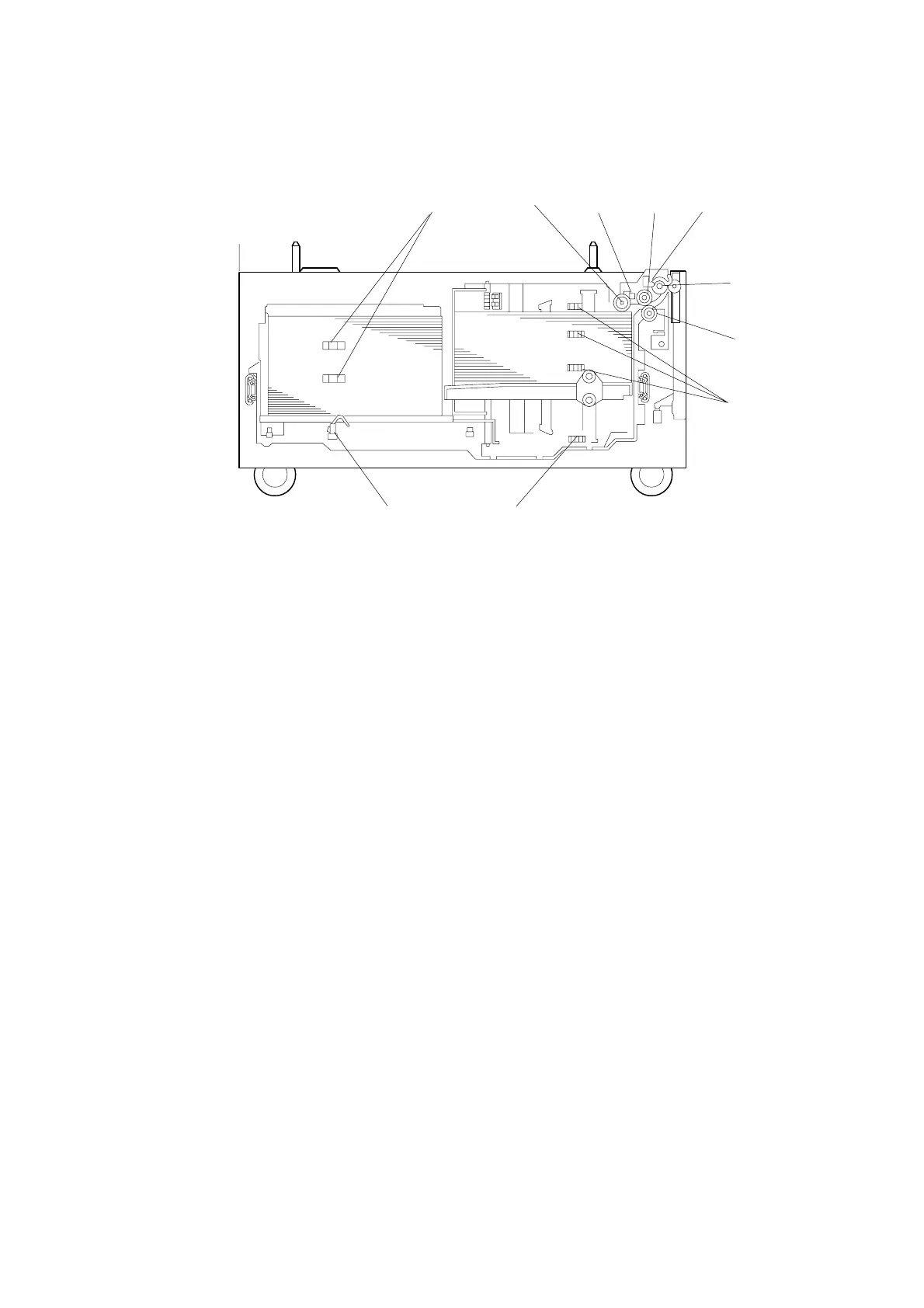

1.2 MECHANICAL COMPONENT LAYOUT
1. Pick-up Roller
2. Upper Limit Sensor
3. Paper Feed Roller
4. Relay Sensor
5. Relay Roller
6. Reverse Roller
7. Paper Height Sensors 1, 2, 3
8. Lower Limit Sensor
9. Left Paper End Sensor
10. Paper Height Sensors 4,5
B391D101.WMF
2 1 4 3
5
6
7
8 9
10
