Ricoh Aficio MP 3350B

Junction Gates
SM 39 B793
Booklet
Finisher
B793
2.2 JUNCTION GATES
Two junction gates control the path of paper.
Each junction gate is controlled by a solenoid.

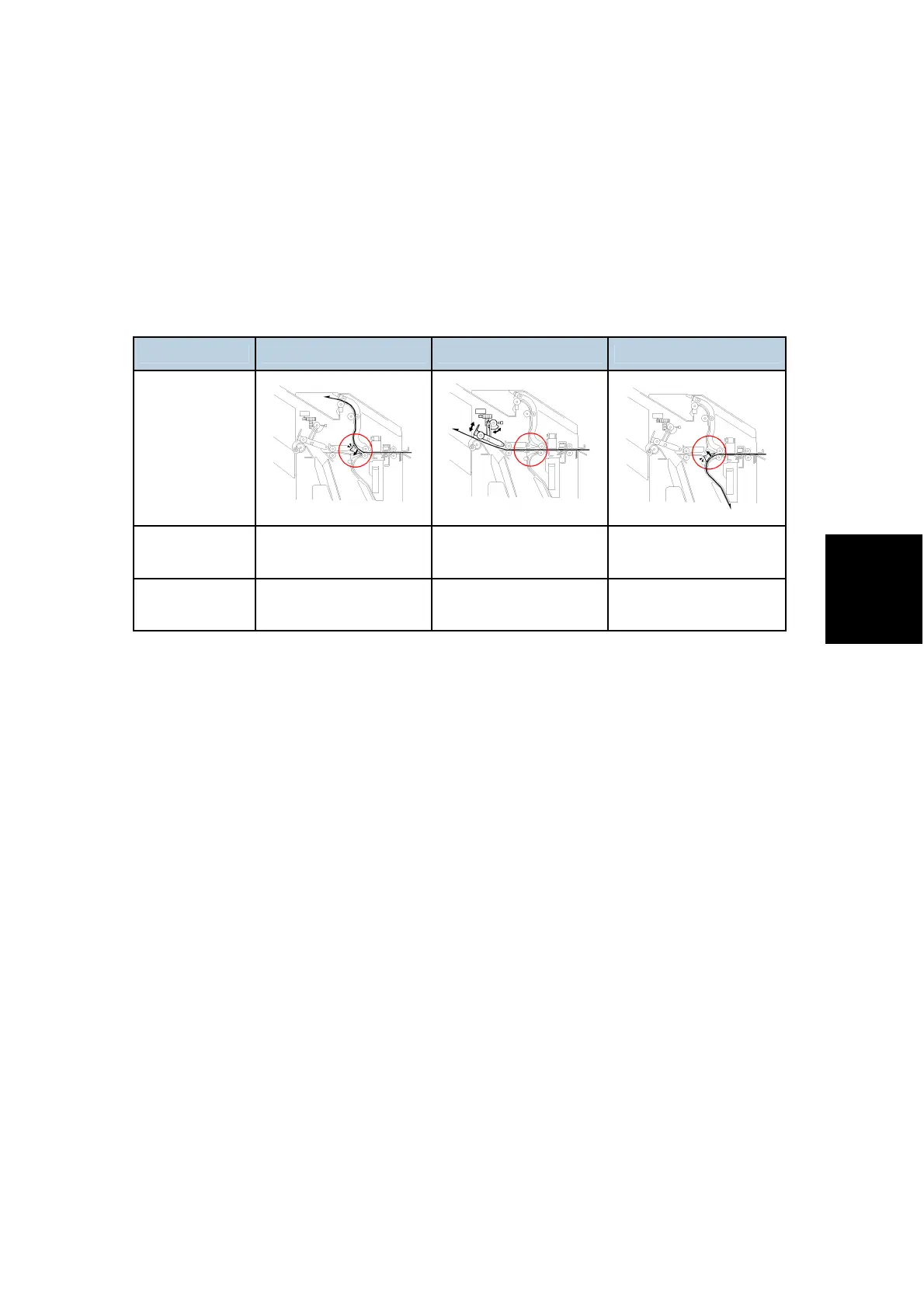

Junction gate operation is summarized in the following table.
Mode Proof Shift Staple
Paper Path
Proof Tray
Gate Solenoid
ON OFF OFF
Staple Tray
Gate Solenoid
OFF OFF ON
