2.4 PAPER END DETECTION

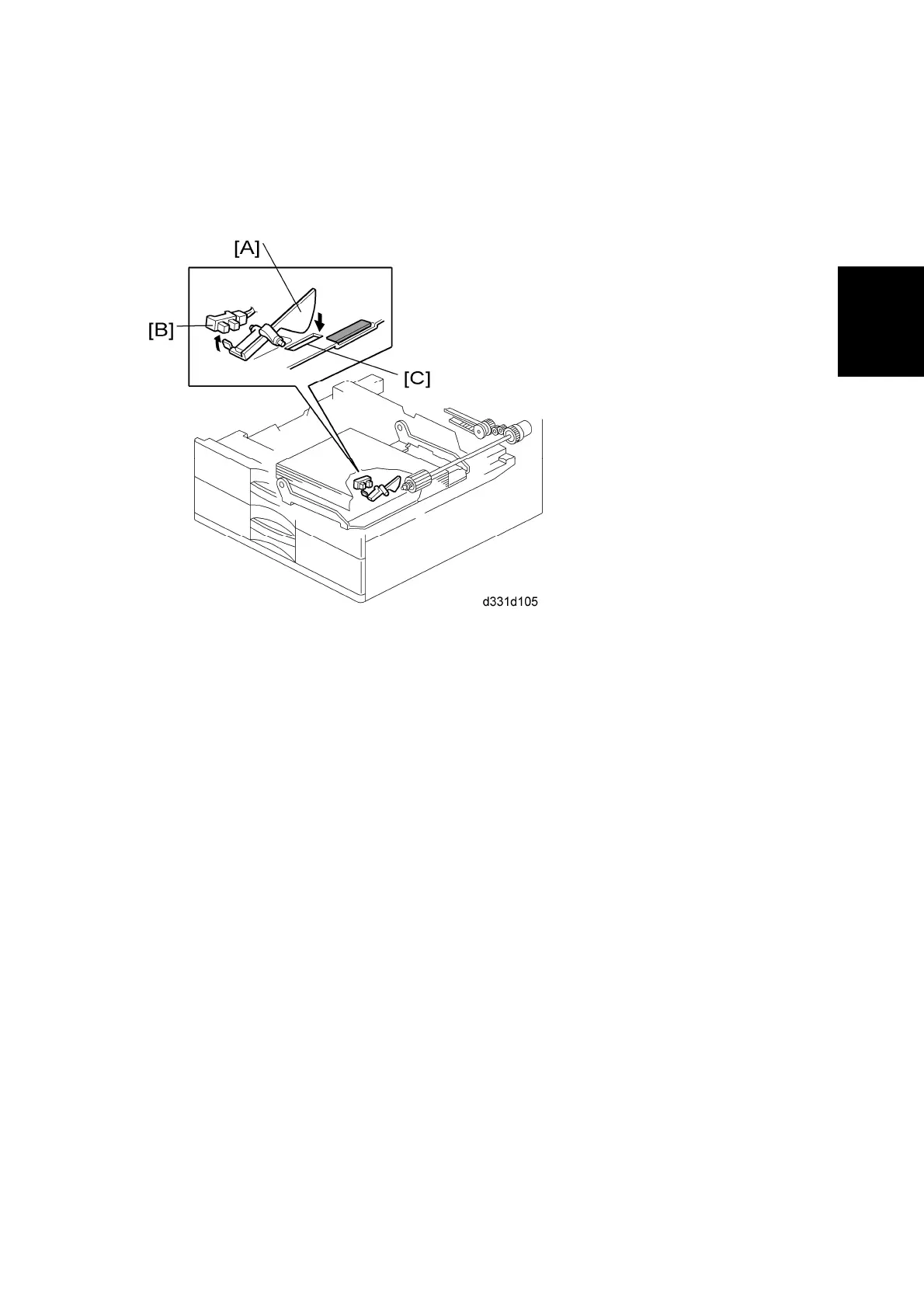

If there is some paper in the paper tray, the paper stack raises the paper end feeler [A] and
the paper end sensor [B] is deactivated.
When the paper tray runs out of paper, the paper end feeler drops into the cutout [C] in the
tray bottom plate and the paper end sensor is activated.
When the paper tray is drawn out with no paper in the tray, the shape of the paper end
feeler causes it to lift up.
