Duplex Unit (D369)
D017/D018/D019/D020 1-40 SM

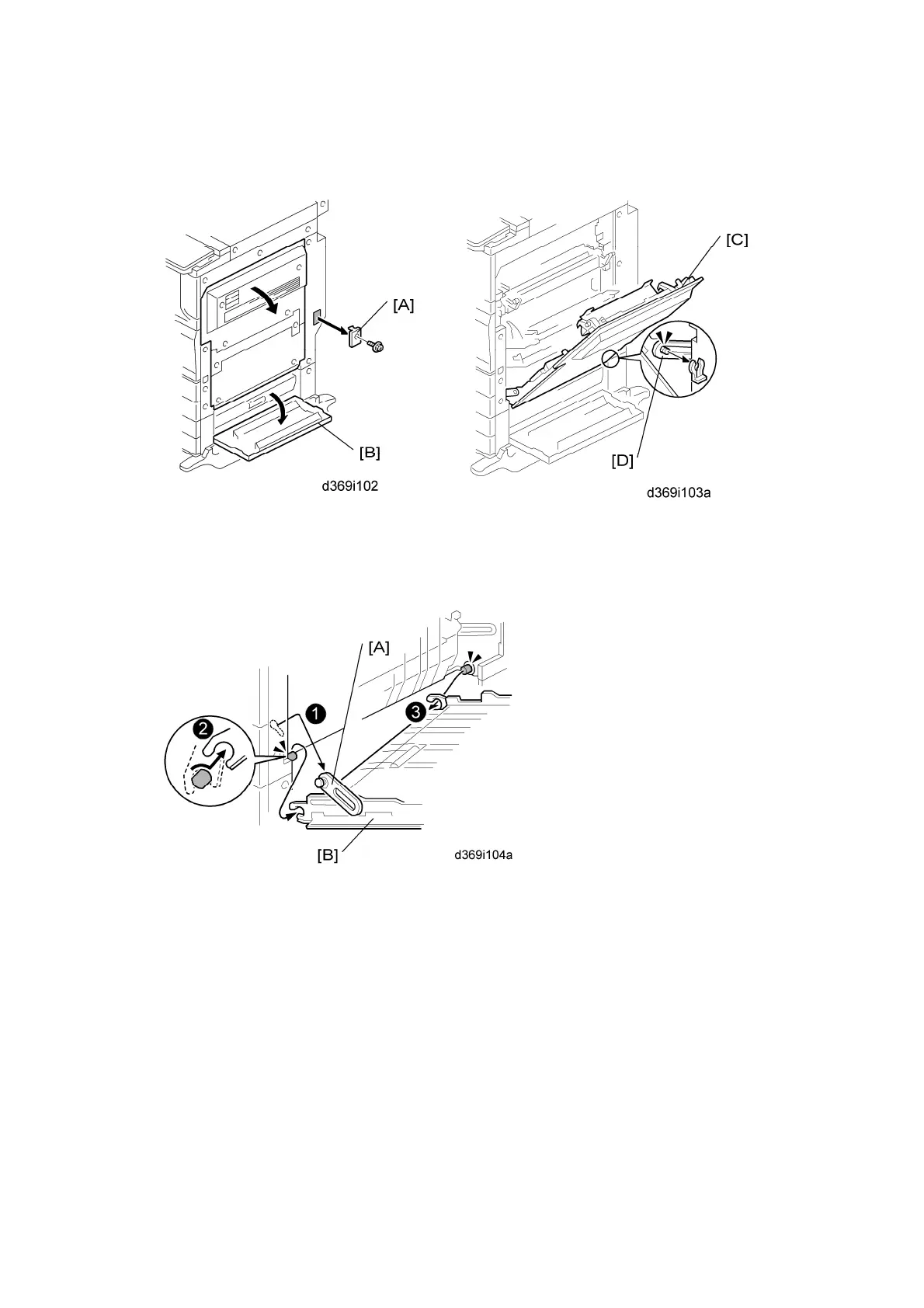

1. Remove all tapes.
2. Remove the connector cover [A] ( x 1).
3. Open the right cover [B] of the optional paper tray unit or LCT and right cover [C].
4. Release the rear link [D] from the right cover ( x 1).
5. Release the front link [A] from the mainframe.
6. Remove the right cover [B].
To Next Page
