Scanner Unit
D017/D018/D019/D020 3-10 SM

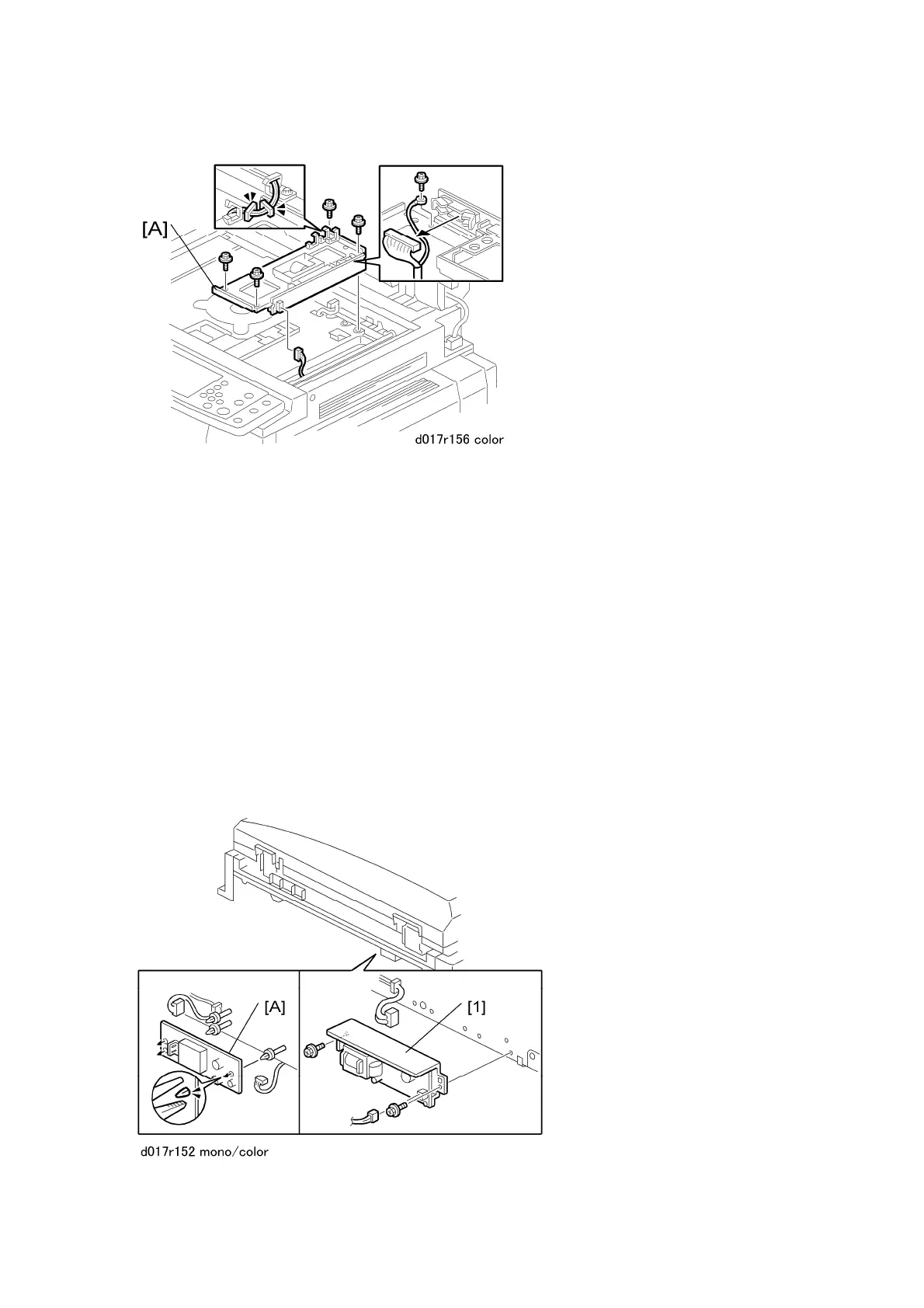

1. Remove:
[A] Sensor board unit ( x 4, x 1, = x 2)
When reassembling
Adjust the following SP modes after you replace the sensor board unit:
SP4–008 (Sub Scan Mag)
SP4–010 (Sub Mag Reg.)
SP4–011 (Main Scan Reg)
SP4–688 (DF: Density Adjustment). This SP code adjusts the density level if the ID of
outputs made in the DF and Platen mode is different.
For more details, see Image Adjustment: Scanning.
3.3.6 EXPOSURE LAMP STABILIZER
