Heaters
SM 1-59 D017/D018/D019/D020
Installation
1.17 HEATERS
1.17.1 ANTI-CONDENSATION HEATER (SCANNER UNIT)
Installation Procedure
1. Rear cover (see "Rear Cover" in the "Replacement and Adjustment" section)
2. Open the ARDF or platen cover.

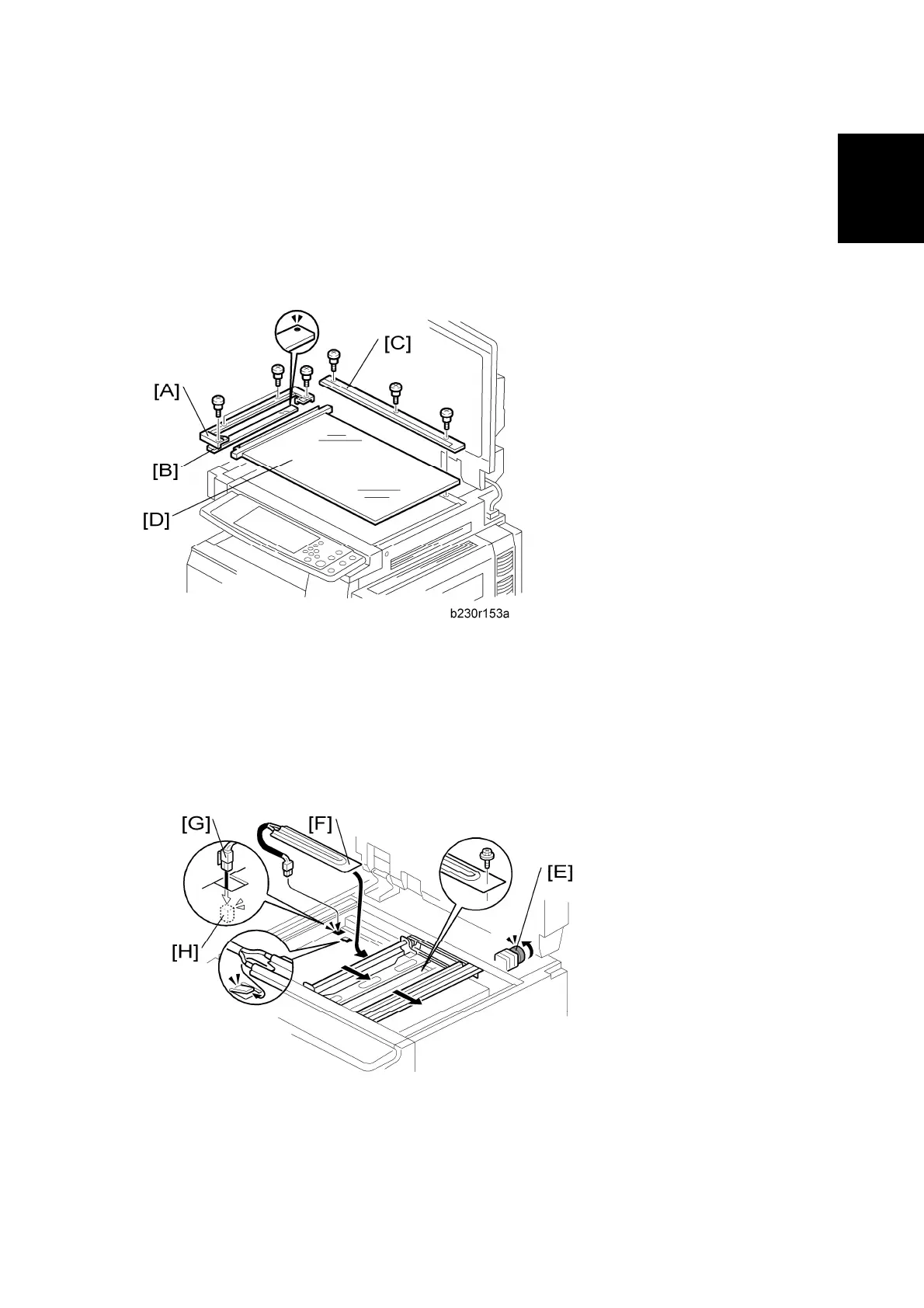

3. Glass cover [A] ( x 4)
4. ARDF exposure glass [B]
5. Rear scale [C] ( x 3)
6. Exposure glass with left scale [D]
7. Move the scanner carriage to the right side by rotating the scanner motor [E].
8. Install the heater [F] in the scanner unit ( x 1, hook)
9. Put the connector [G] through the cutout.
