Ricoh Aficio MP2550B - Tray Heater (Copier)

Heaters
D017/D018/D019/D020 1-60 SM
10. Connect it to the connector [H] (blue and red cords) in the frame of the machine.
11. Reassemble the machine.
1.17.2 TRAY HEATER (COPIER)
 Disconnect the copier power cord before you start this procedure.

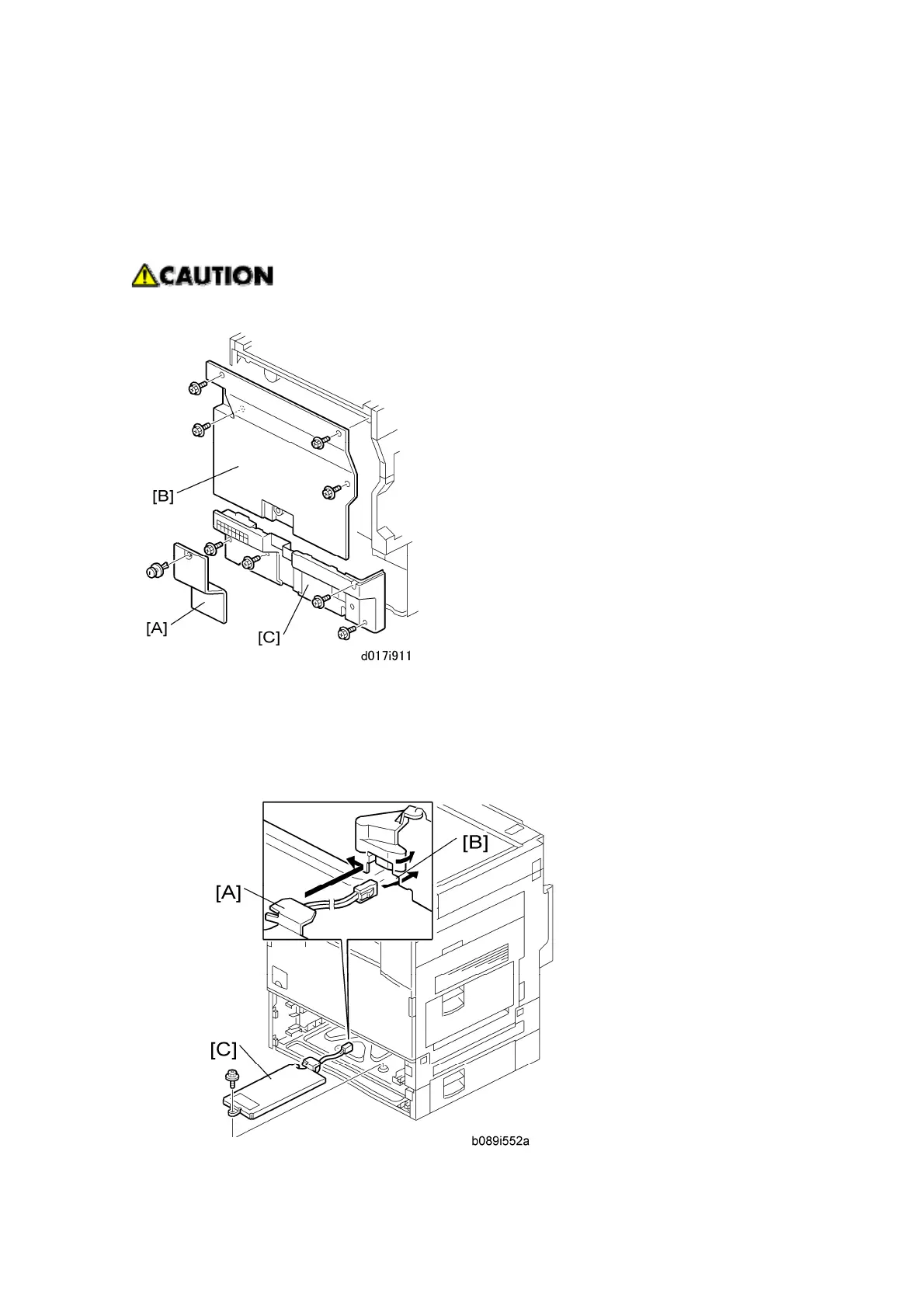

1. Remove:
 Connector cover [A]
 Rear upper cover [B] ( x 4)
 Rear lower cover [C] ( x 4)
