Laser Unit
D017/D018/D019/D020 3-20
SM
3.4.5

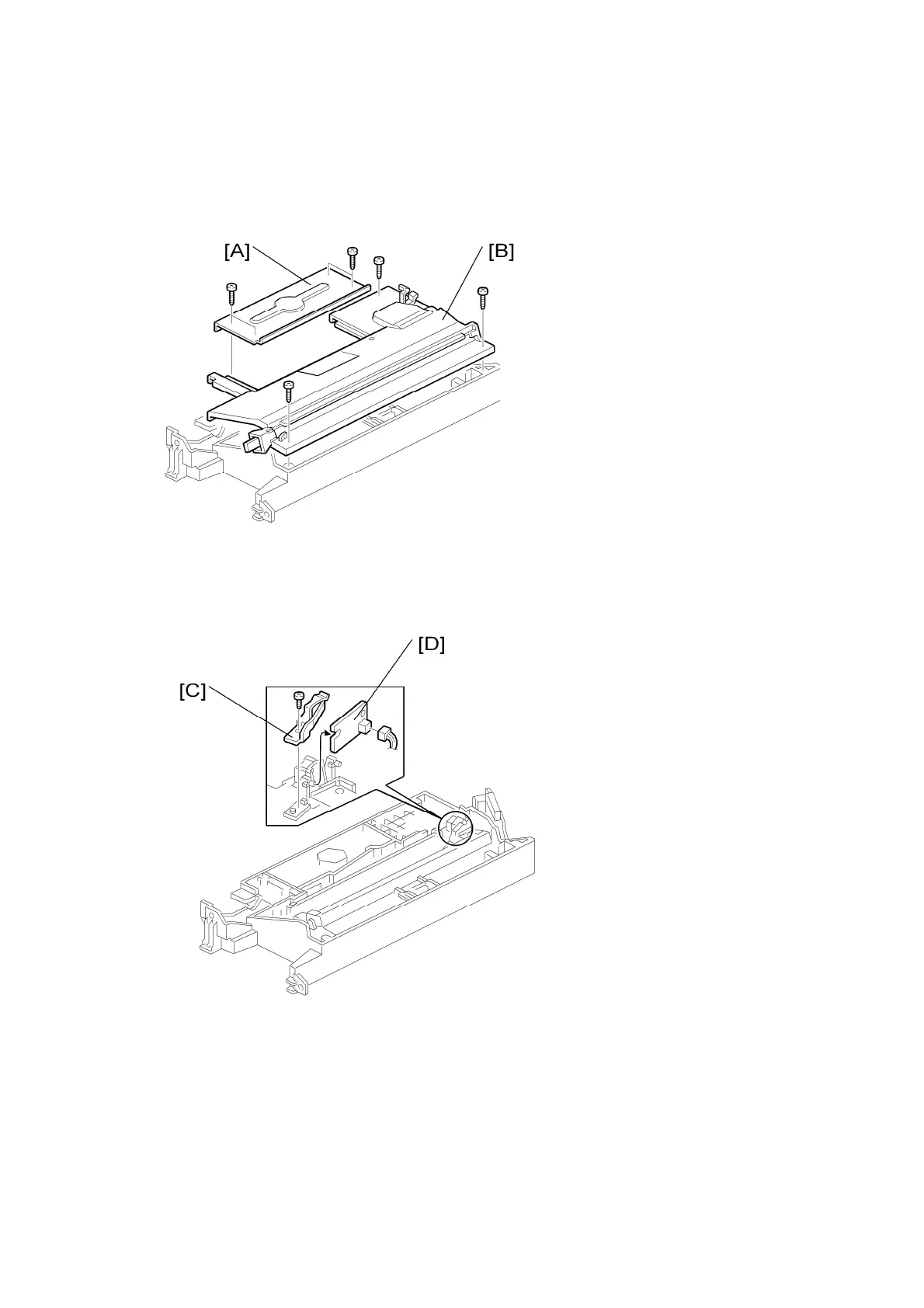

LASER SYNCHRONIZATION DETECTOR
1.
Remove the laser unit (see ‘Laser Unit’).
2.
Remove the heat sink [A] (

x4).
3.
Remove the laser unit cover [B] (

x3).
4.
Remove the bracket [C] (

x1).
5.
Replace the laser sync
hronization detector [D] (

x1).
151
