Boards
D361 168 SM
5.2.2 MBU
On this board, the flash ROM contains the FCU firmware, and the SRAM contains the
system data and user parameters. Even if the FCU is changed, the system data and user
parameters are kept on the MBU board.
ROM
 3MB flash ROMs for system software storage
 2MB (16bit x 1MB) + 1MB (16bit x 512K)
SRAM
 The 256 KB SRAM for system and user parameter storage is backed up by a lithium
battery.
Memory Back-up
 A lithium battery backs up the system parameters and programmed items in the SRAM,
in case the base copier's main switch is turned off.
Switches
Item Description
SW1 Switches the SRAM backup battery on/off.

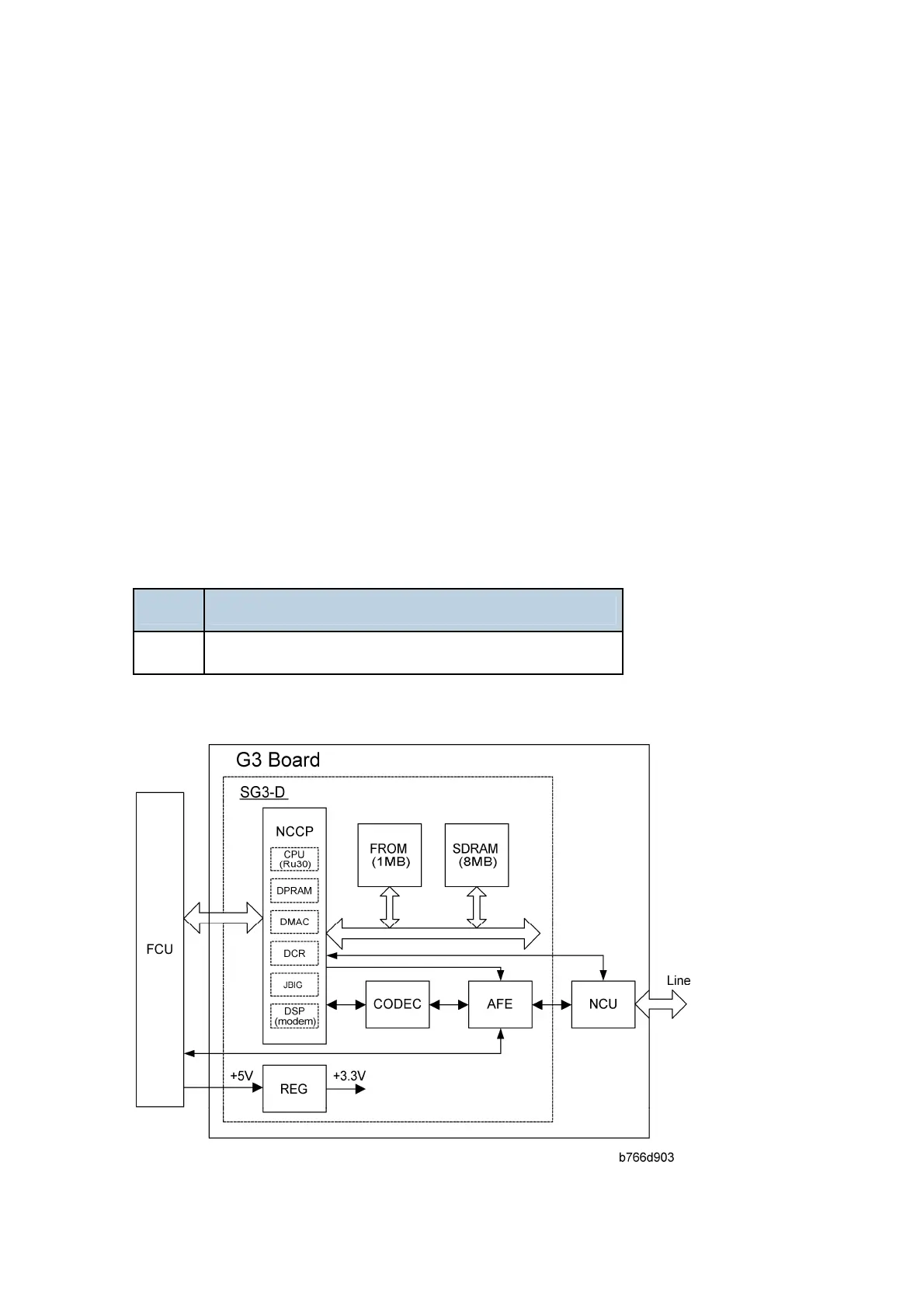

5.2.3 SG3 BOARD
