Copier Installation
SM 1-13 D017/D018/D019/D020
Installation
Emblem, Decals

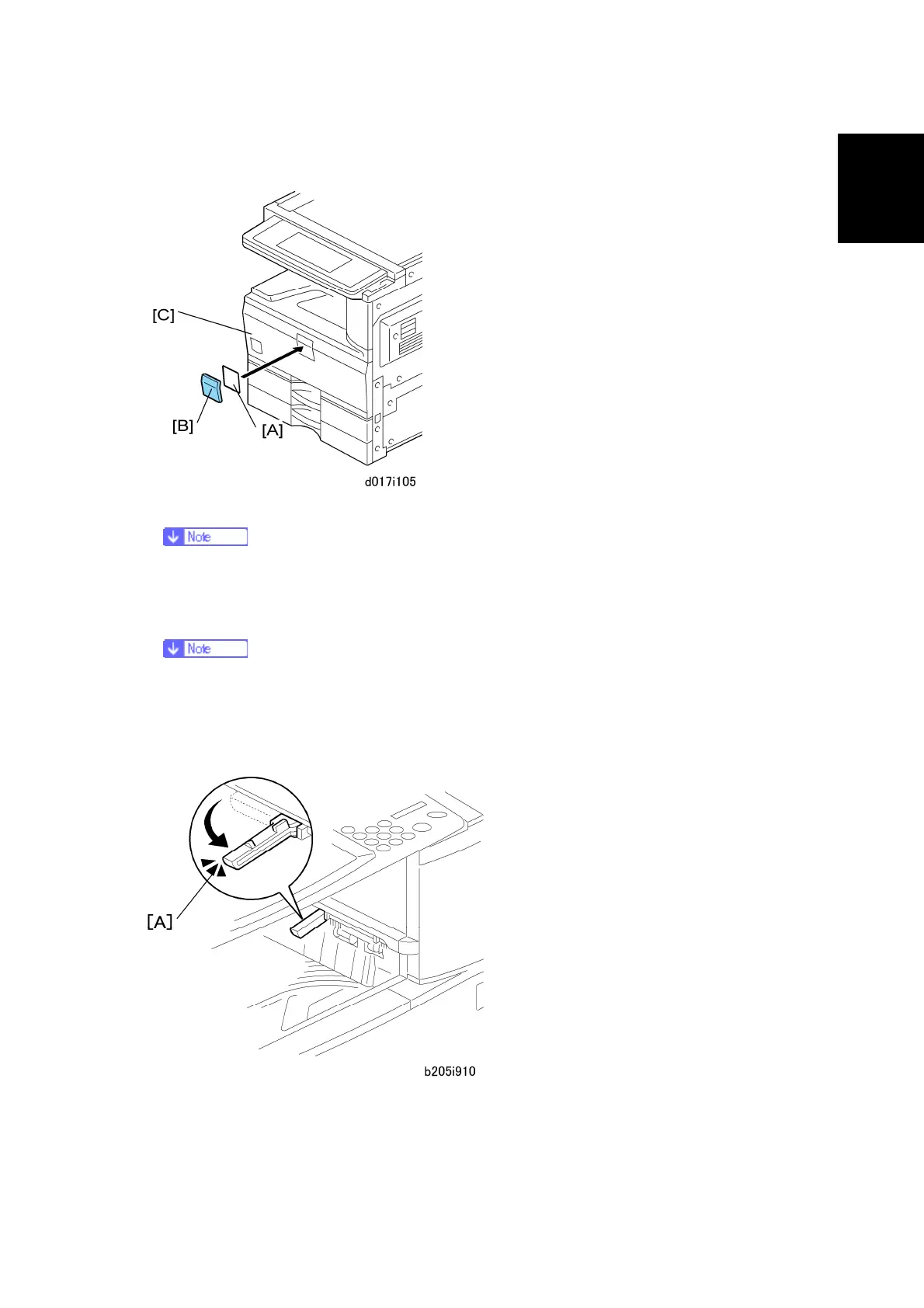

1. Attach the emblem [A] and panel [B] to the front door [C].
 Push the panel in until the emblem and panel move into their positions. You
will hear a click.
2. Adjust the side guides and end guide to match the paper size.
 To move the side guides, first pull out the tray fully, then push down the green
lock at the rear of the tray.
Completion
1. If the optional bridge unit will not be installed, swing the sensor feeler [A] out.
2. Install the optional ARDF or the optional platen cover (see "ARDF Installation" or
"Platen Cover").
To Next Page
