Key Counter (B452)
D017/D018/D019/D020 1-58 SM
6. Install the key counter cover [D] ( x 2).

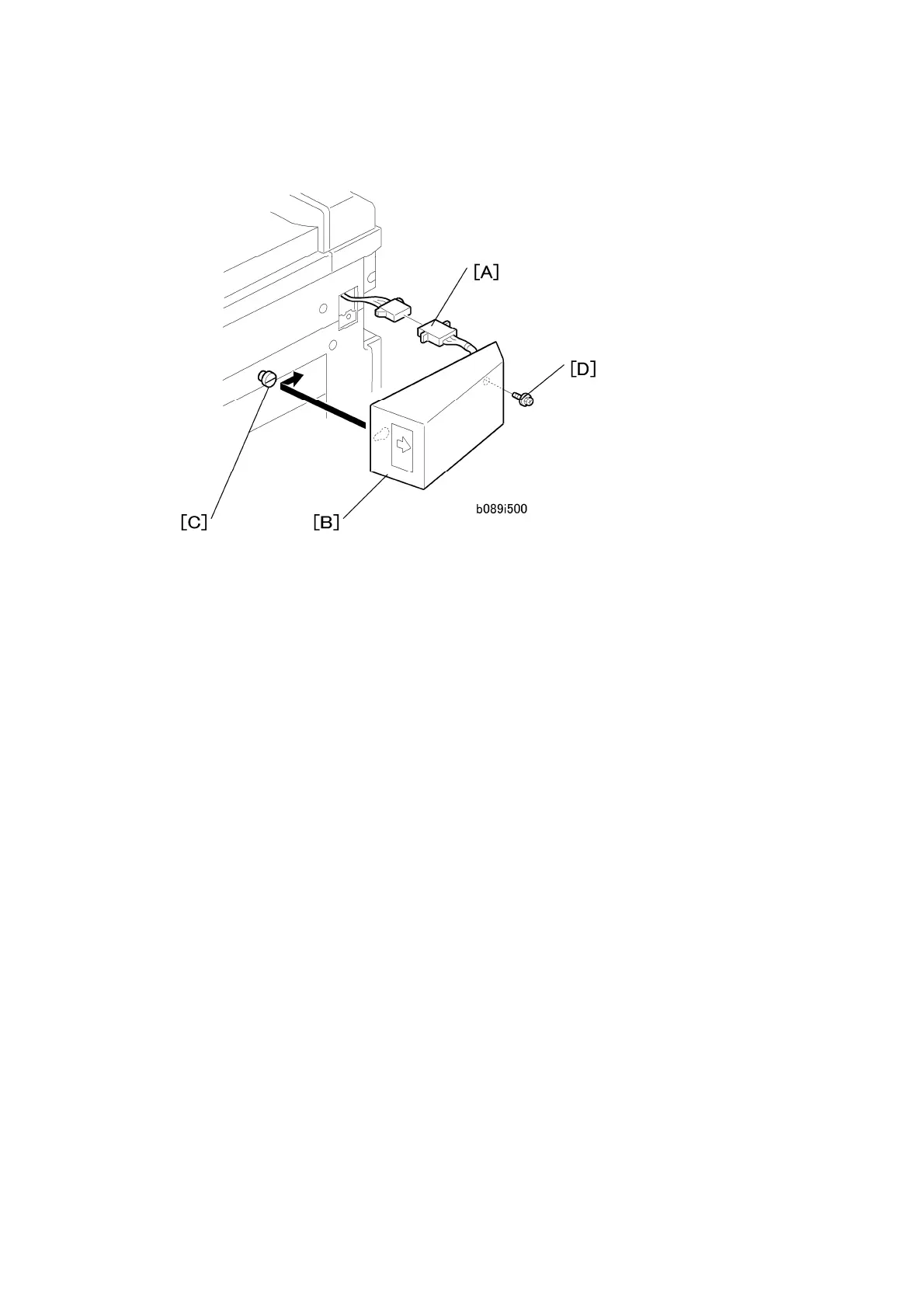

7. Connect the cable [A].
8. Hook the key counter holder assembly [B] onto the stepped screw [C].
9. Secure the key counter holder assembly with a screw [D].
10. Use the User Tools to enable the counter function for the following modes:
 Copy mode
 Document server mode
 Fax mode
 Scanner mode
 Printer mode
To Next Page
