500-Sheet Finisher (D372)
SM 1-55
D017/D018/D019/D020
Inst
allation
3.

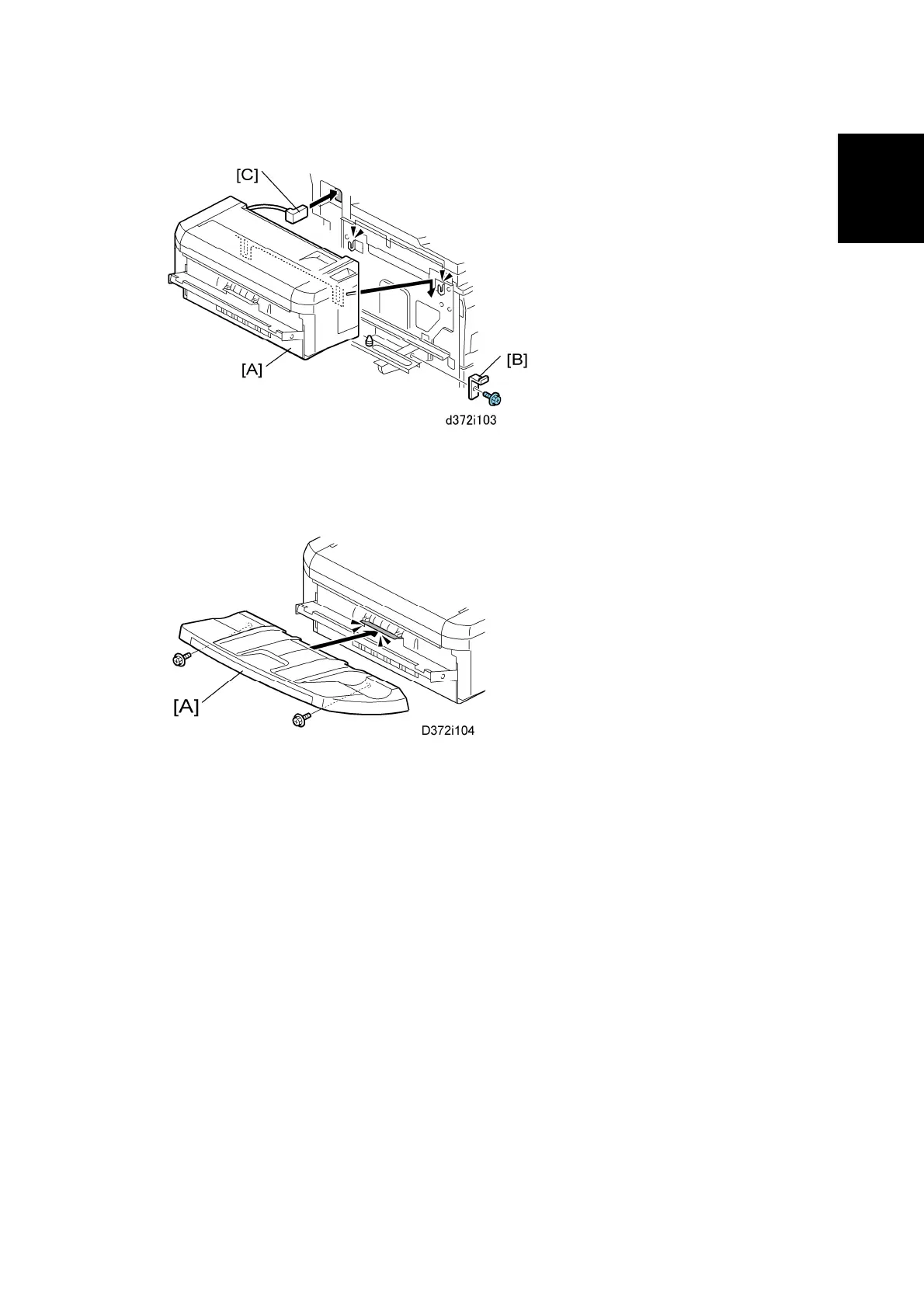

Install the 500-sheet finisher [A].
4.
Install the holder bracket [B] (

x 1; M
3 x 6).
5.
Connect the finisher cable [C].
6.
Install the shift tray [A] (

x 2 - M3 x 8).
7.
T
urn on the main power switch
and check the finisher operation.
