Heaters
SM 1-63
D017/D018/D019/D020
Inst
allation
7.

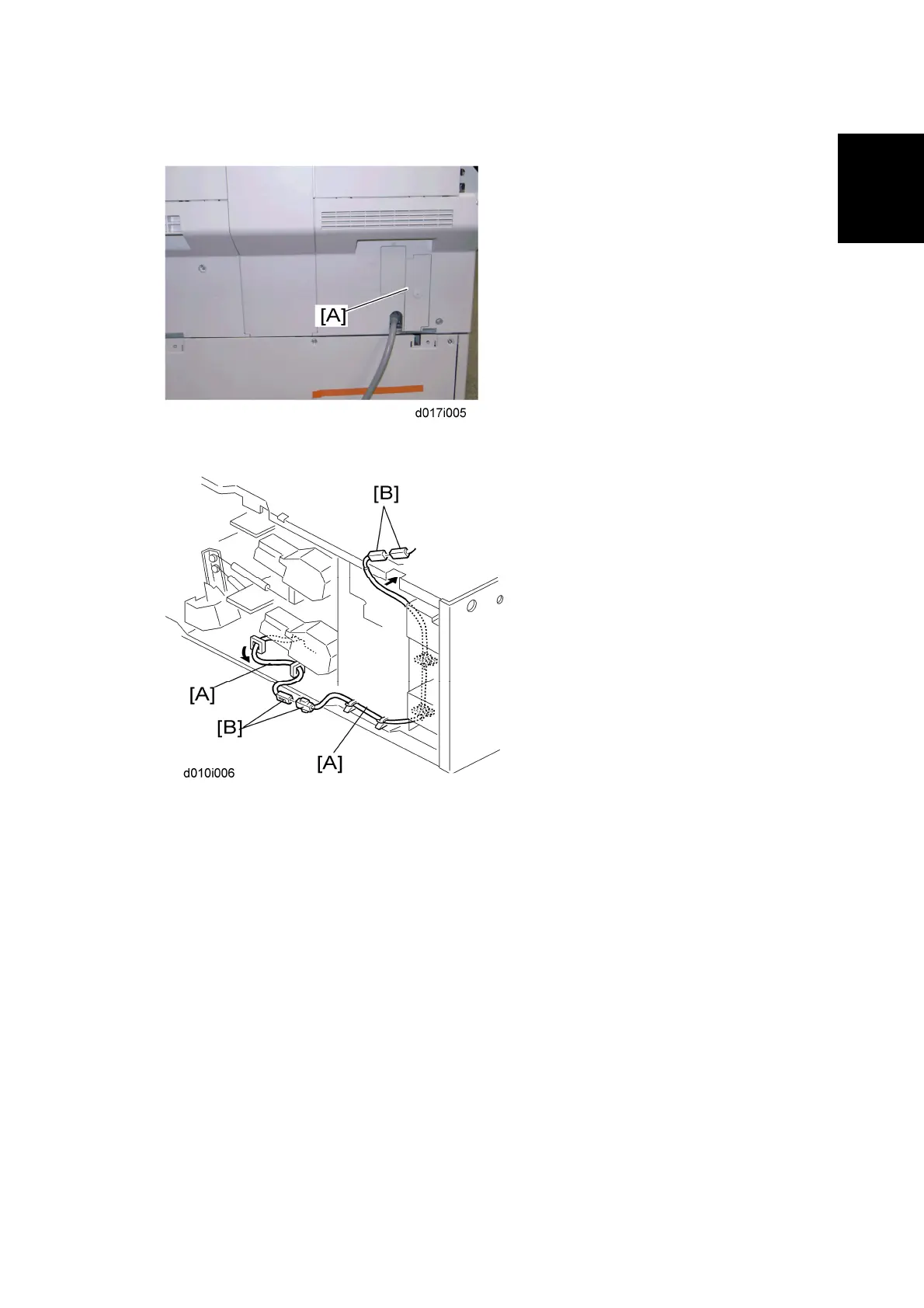

Remove the heater harness cover [A] (rivet screw x 1).
8.
Clamp the cables
[A], as shown.
9.
Join the connectors [B].
10.
Reinstall the cable guide.
11.
Reinstall the rear cover for the optional paper tray unit.
96
