Guide to the Machine
20
1
Guide to Components
This section lists the names and functions of the parts of this machine.

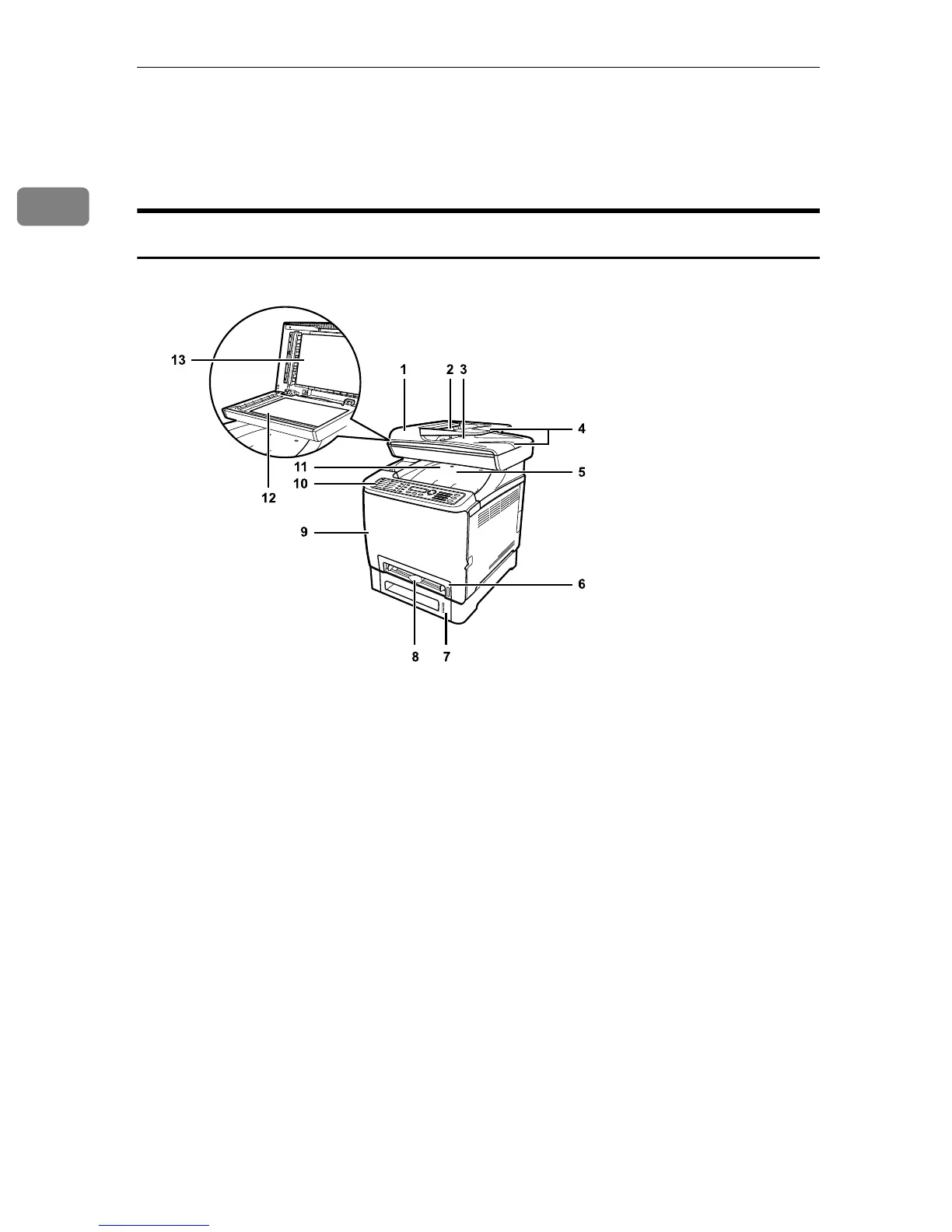

Exterior: Front View
1. ADF (Auto document feeder)
Cover
Open this cover to remove originals
jammed in the ADF.
2. Input Tray for the ADF
Place stacks of originals here. They will
feed in automatically. This tray can hold
up to 35 sheets of plain paper.
3. Output Tray for the ADF
Originals scanned with the ADF are out-
put here.
4. Extender for the ADF Trays
Extend these when placing paper longer
than A4 in the input tray for ADF.
5. Top Cover
Open this cover to replace the print car-
tridges.
6. Tray 1
This tray can hold up to 250 sheets of
plain paper.
7. Tray 2 (option)
This tray can hold up to 500 sheets of
plain paper.
8. Bypass Tray
Load paper here sheet by sheet.
9. Front Cover
Open this cover to replace the waste ton-
er bottle or remove jammed paper.
10. Control Panel
Contains a screen and keys for machine
control.
11. Output Tray
Printed paper is output here. Up to 150
sheets of plain paper can be stacked here.
12. Exposure Glass
Place originals here sheet by sheet.
13. Cover for the Exposure Glass
Open this cover to place originals on the
exposure glass.
BPC056S
