Ricoh Aficio SP C320DN User Manual

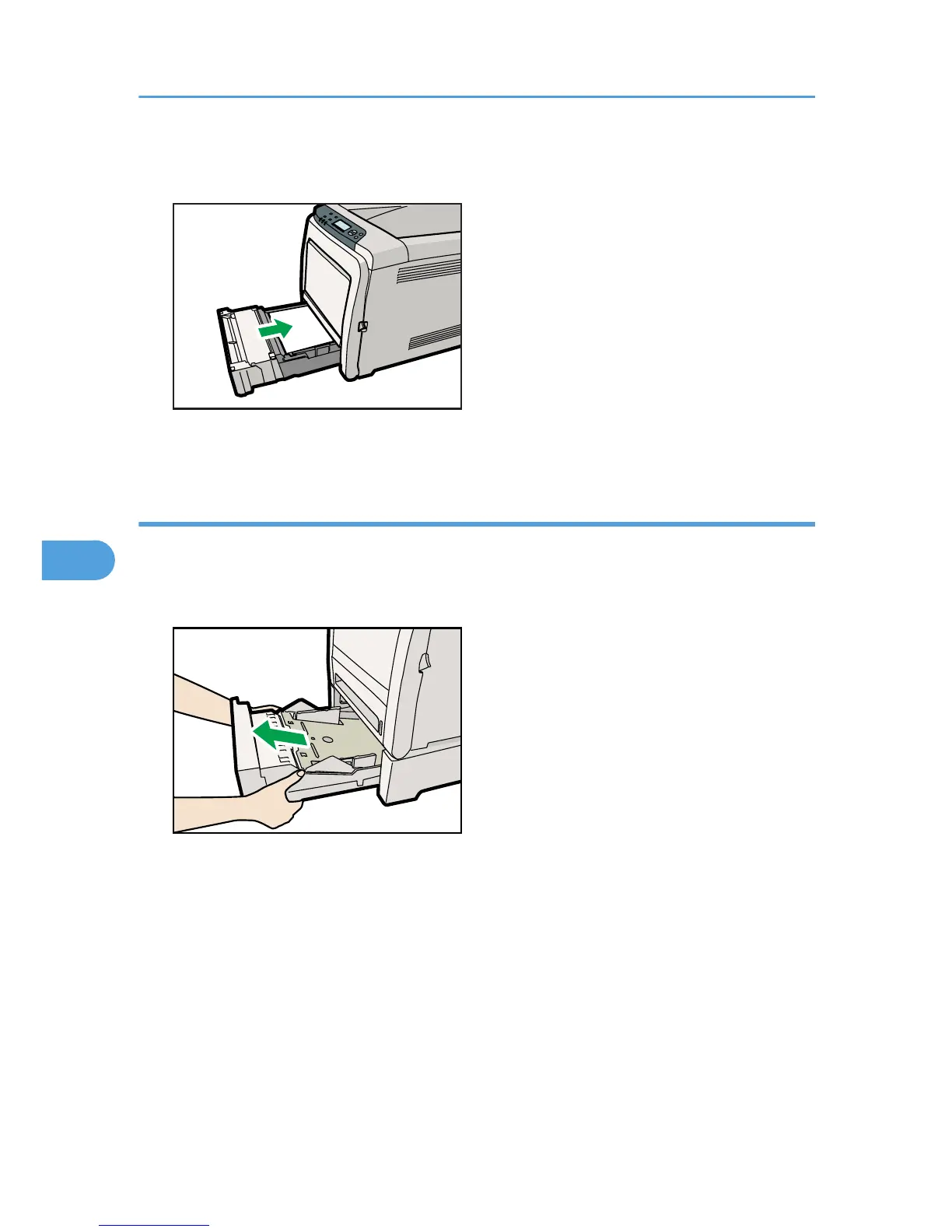

7. Hold the tray with both hands, slide it along the rails of the printer body, and then push it
straight in.
CBK045
To avoid paper jams, make sure the tray is securely inserted.
Loading paper in the optional paper feed tray
The following example explains the loading procedure for the optional paper feed tray.
1. Lift and pull the optional paper feed unit, and then hold the tray with both hands, and then
pull it out.
CBK226
Place the tray on a flat surface.
6. Loading Paper
122
6

Ricoh Aficio SP C320DN Specifications

General

Print Technology	Laser
Duplex Printing	Yes
Processor	400 MHz
Supported Operating Systems	Windows, Mac OS, Linux
Resolution	1200 x 1200 dpi
Connectivity	USB 2.0, Ethernet
Memory	128 MB (expandable to 640 MB)
Dimensions	400 x 428 x 368 mm
Print Speed	Up to 26 ppm
Monthly Duty Cycle	Up to 50, 000 pages
