Ricoh Aficio SP C320DN

Reading the LED Lamps

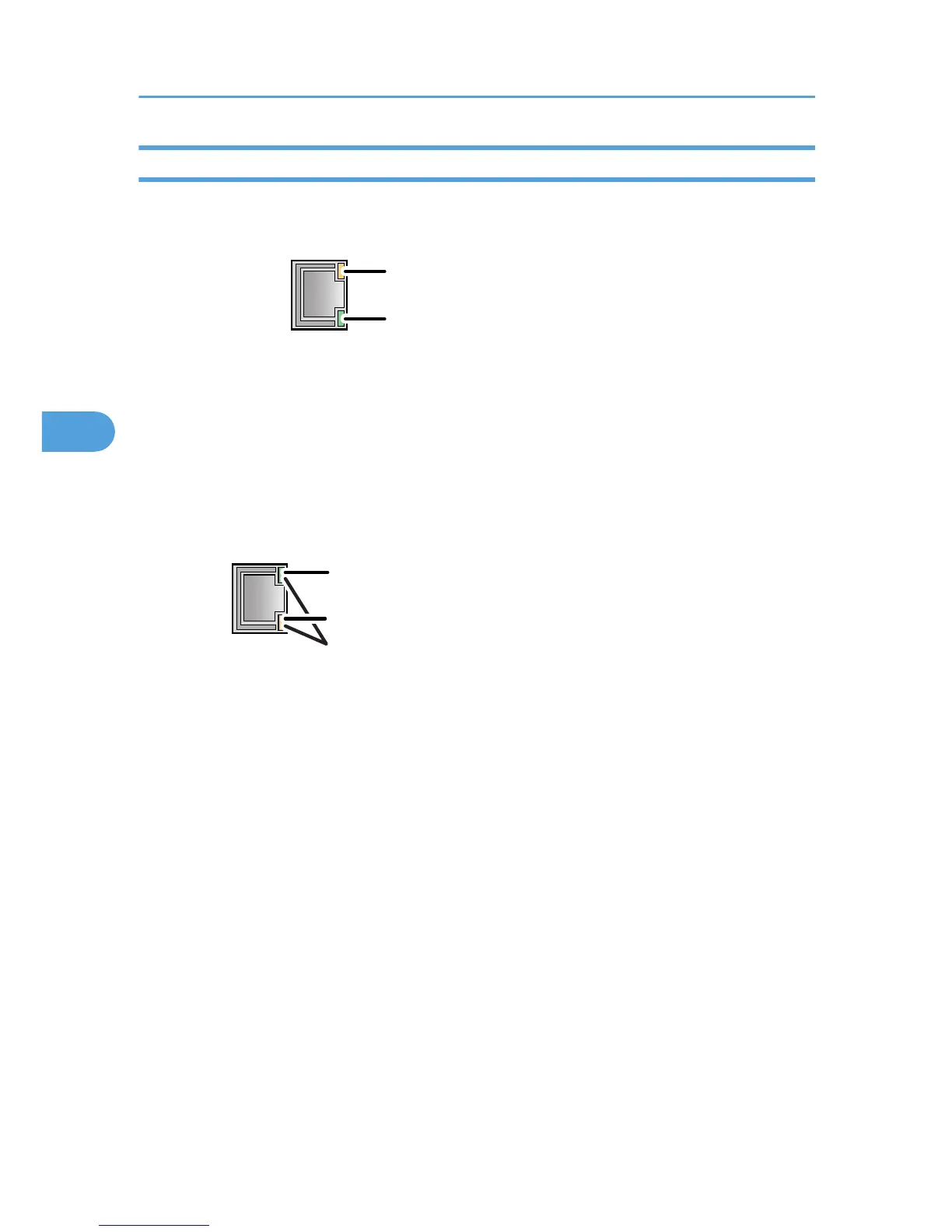

Standard Ethernet port
1
2
CBK090
1. Yellow indicator
If the printer is connected to a 100BASE-TX Ethernet, the yellow indicator will be lit. This indicator will be
unlit if the printer is connected to a 10BASE-T Ethernet.
2. Green indicator
If the printer is connected to a 10BASE-T Ethernet or 100BASE-TX Ethernet, the green indicator will be lit.
Optional Gigabit Ethernet board
CBK091
1
2
3
1. Green indicator
If the printer is connected to a 10BASE-T Ethernet, the green indicator will be lit. This indicator will be unlit
if the printer is connected to a 100BASE-TX Ethernet.
2. Yellow indicator
If the printer is connected to a 100BASE-TX Ethernet, the yellow indicator will be lit. This indicator will be
unlit if the printer is connected to a 10BASE-T Ethernet.
3. Green and yellow indicators
If the printer is connected to a 1000BASE-T Ethernet, both indicators will be lit.
