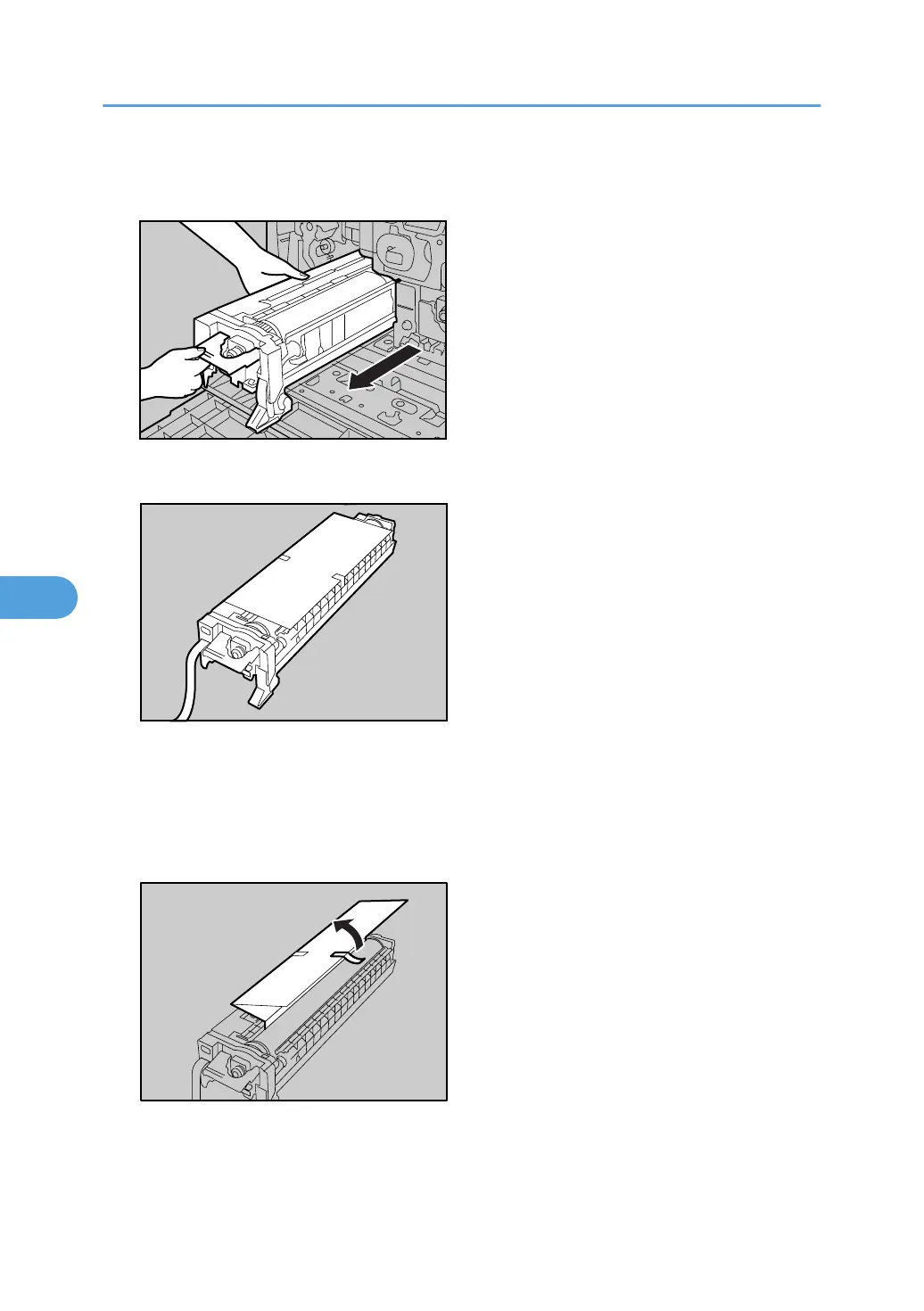

7. Holding the green grip on the left and the handle on the front, pull out the photo conductor
unit.
8. Take the new photo conductor unit out of the box.
For black, install one photo conductor unit; for color, install all three together.
Exposure to light reduces photo conductor unit performance. Replace the unit as quickly as possible.
9. Remove the protecting cover. Do not remove the tape hanging from the front yet.
Take care that nothing comes into contact with the top surface of the photo conductor unit.
When holding the photo conductor unit, hold the green grip on the left and the handle on the front
together. Do not move the photo conductor unit by only holding the grip. Doing so may damage the
grip.
6. Replacing Consumables
120
