Ricoh Aficio SP C811DN Hardware Guide

ATU059S

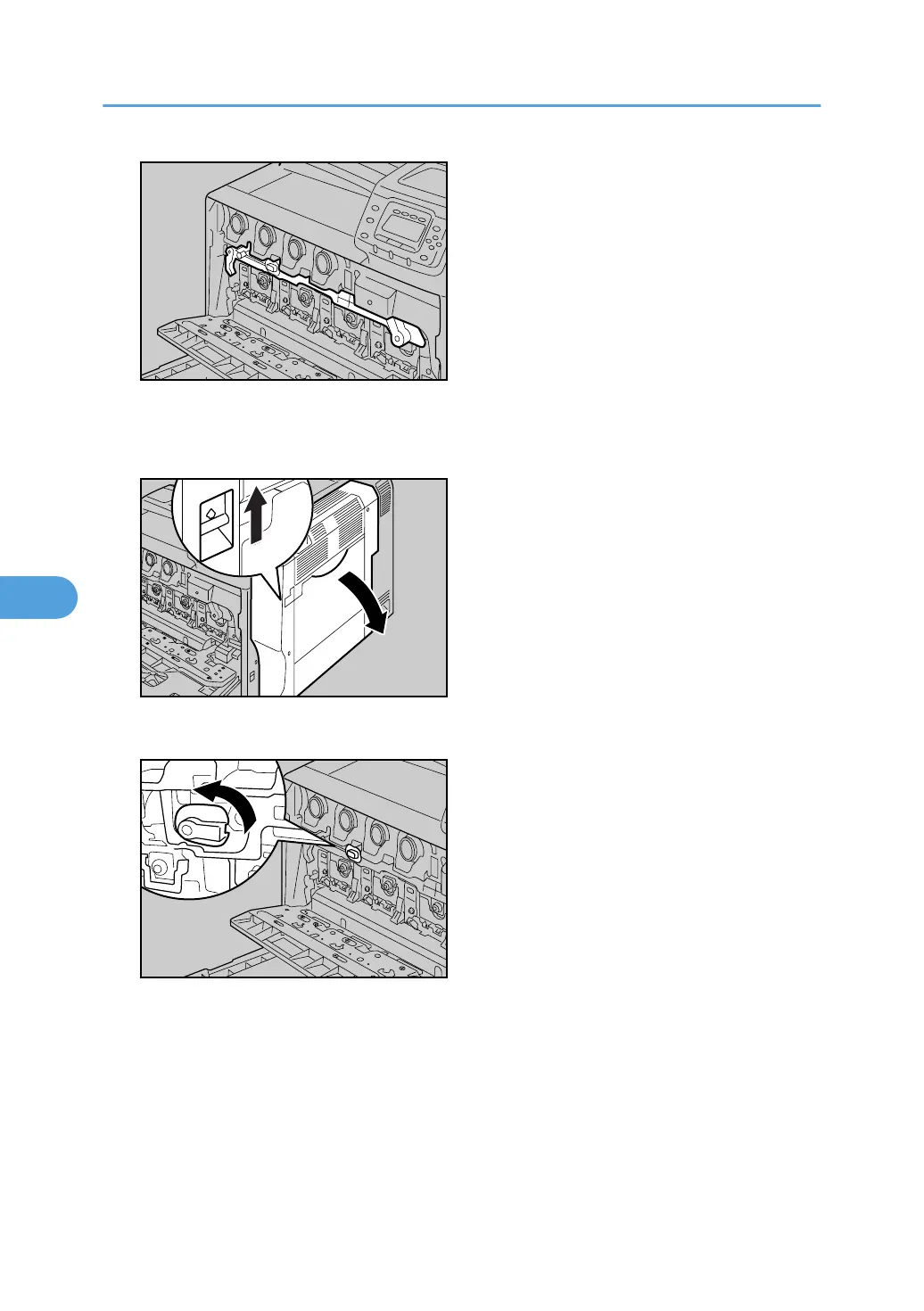

5. Push up the lever on the right side, and open the printer's right cover carefully.
Opening the right cover is necessary for transfer unit replacement.
ATU060S
6. Turn the green lever located on the left side of the transfer unit counterclockwise.
ATU061S
6. Replacing Consumables
126
6
