Copier Installation
SM 2-7 D245/D246/D247
Installation

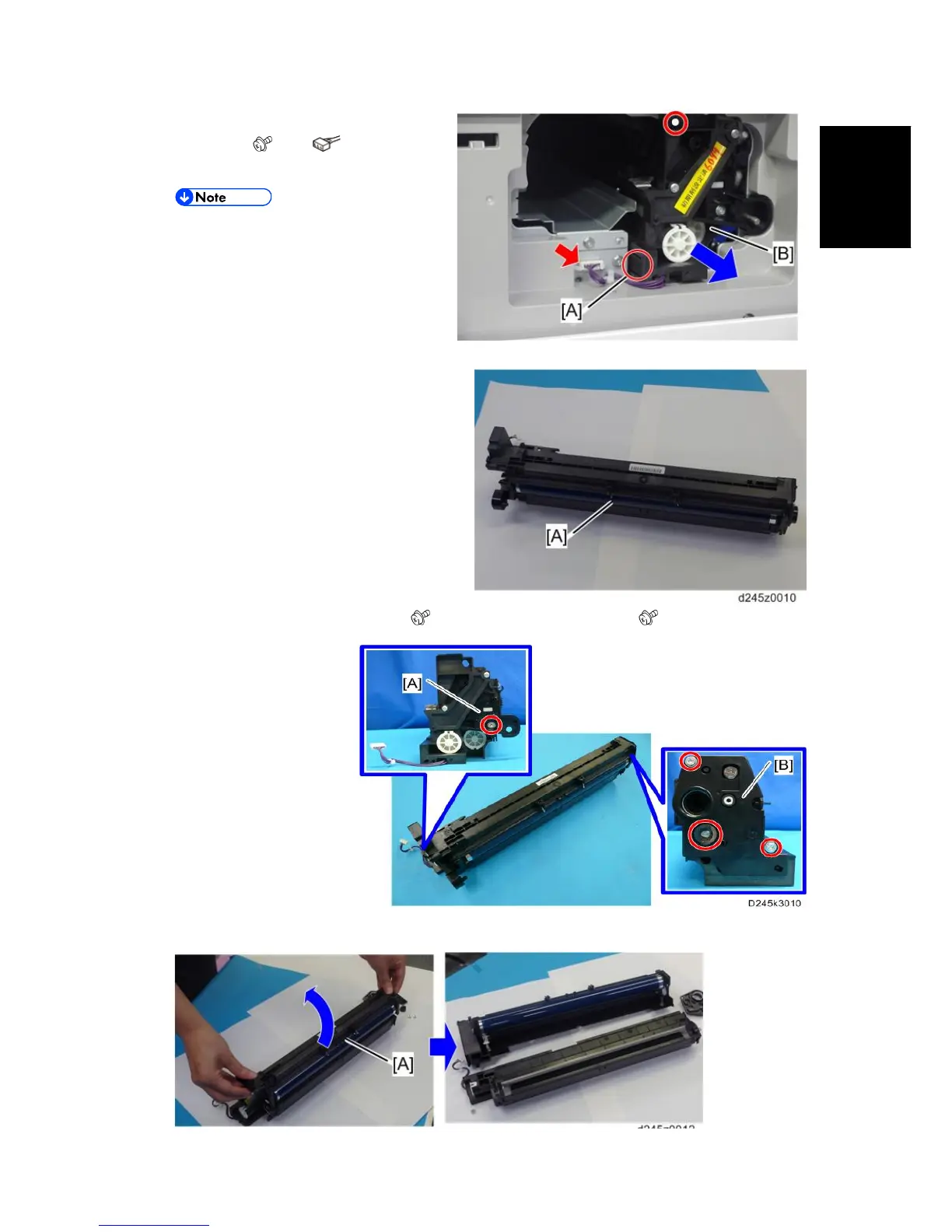

10. Hold the lock [A], and then remove the
PCDU [B] (
x 1, x 1).
The removed screw will not be
used, so discard it.
11. Place sheets of paper on a flat surface, and then put the PCDU [A] on it.
12. Remove the front face plate [A] (
x 1) and rear face plate [B] ( x 2, 1 coupling).
13. Separate the PCDU [A] into the upper part and the lower part.
Rev. 01/22/2016
