4.Replacement and Adjustment
102

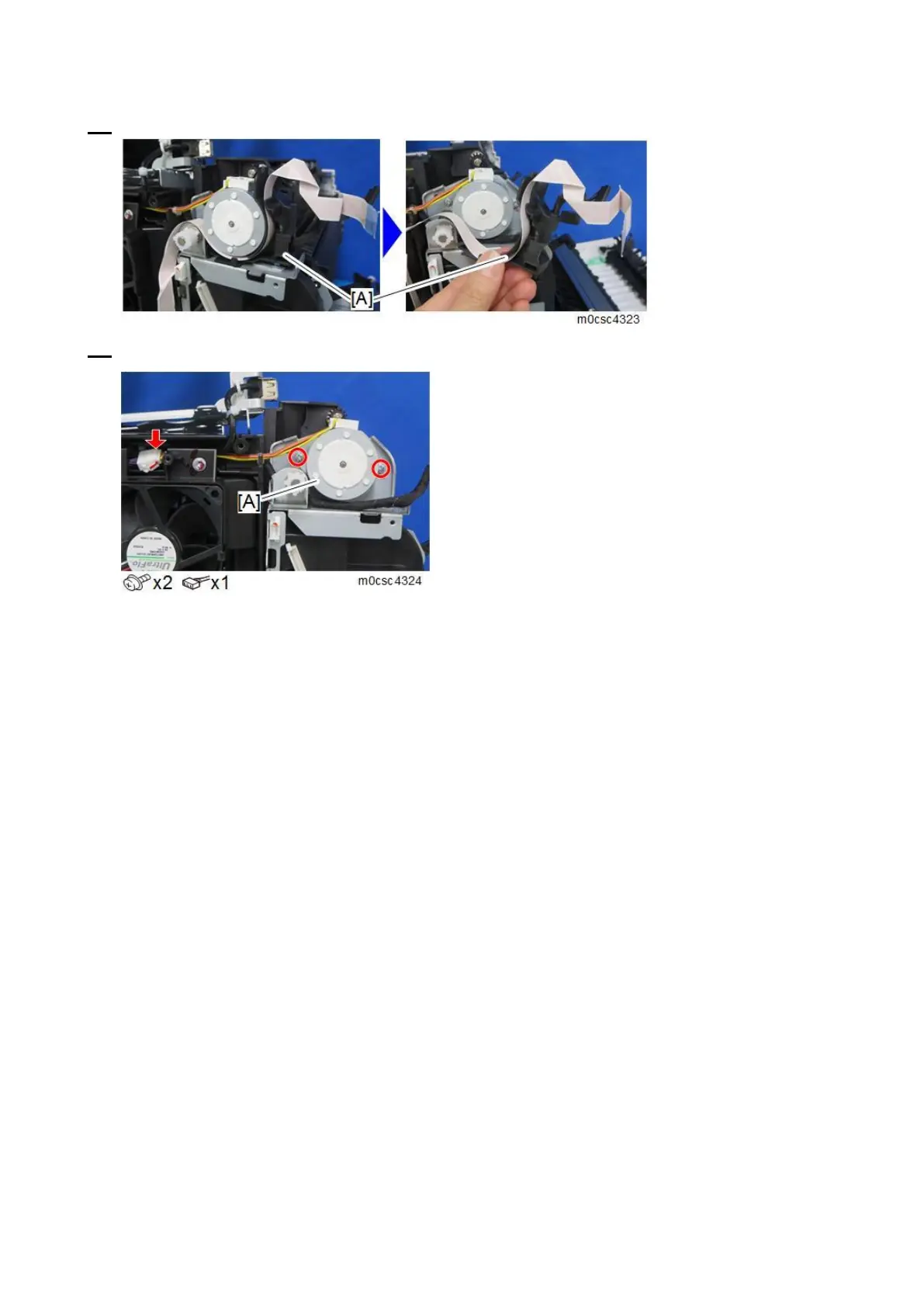

12. On the MF model only, remove the FFC harness guide [A].
13. Remove the duplex motor (M5) [A].
