Ricoh P C300W - Page 124

4.Replacement and Adjustment
112

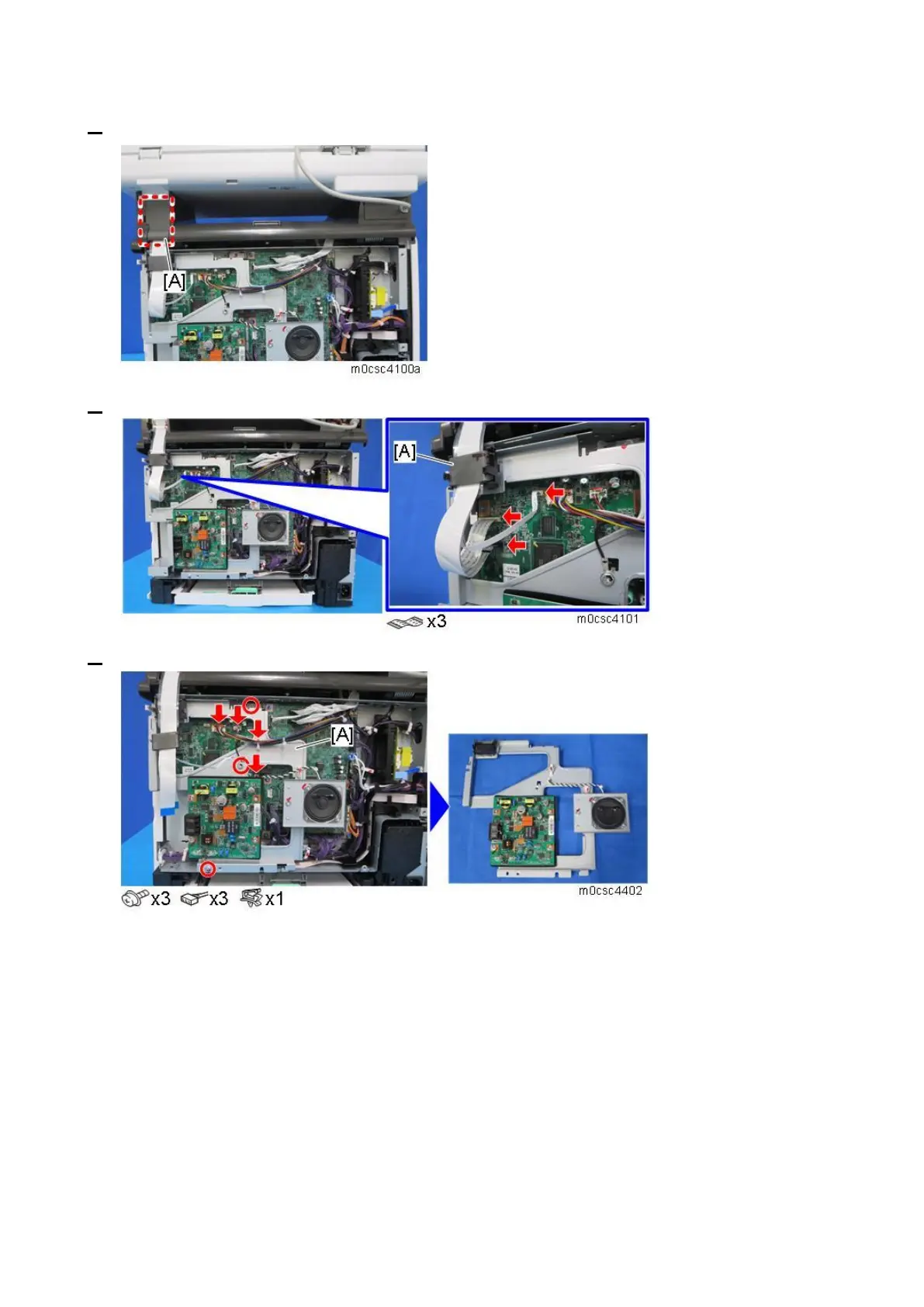

4. On the MF model only, remove the left stand cover [A].
5. On the MF model only, disconnect the three FFCs, and then pull out from the ferrite core [A].
6. On the MF model only, remove the FCU assembly [A].
