4.Replacement and Adjustment
123

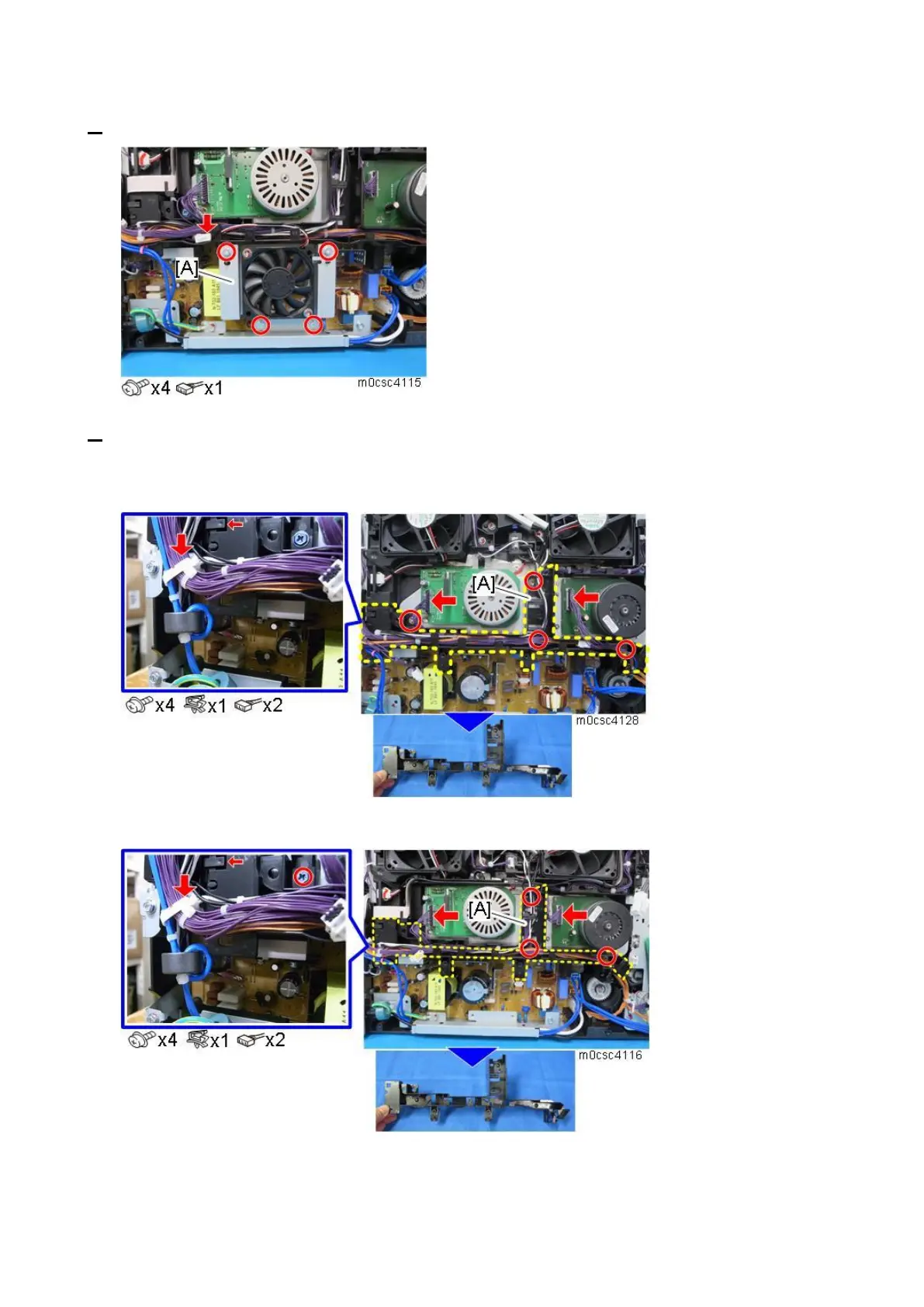

6. Remove the PSU cooling fan assembly [A].
7. Release all harnesses and hook on the harness guide, and then remove the lower harness guide
[A].
Printer model:
MF model:
