4.Replacement and Adjustment
57

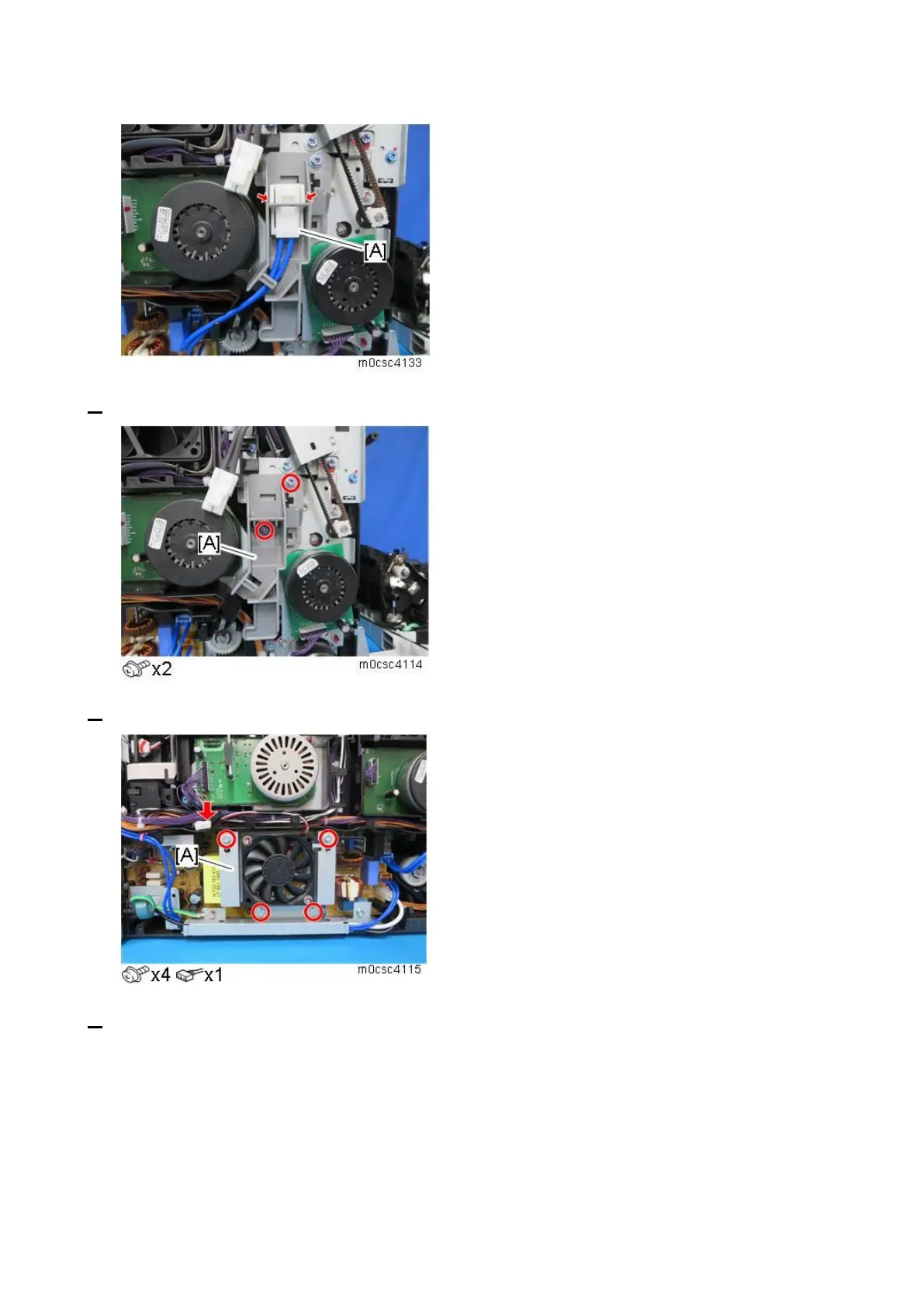

4. Remove the fusing harness guide [A].
5. Remove the PSU cooling fan assembly [A].
6. Release all harnesses and hook on the harness guide to remove the lower harness guide [A].
