4.Replacement and Adjustment
61

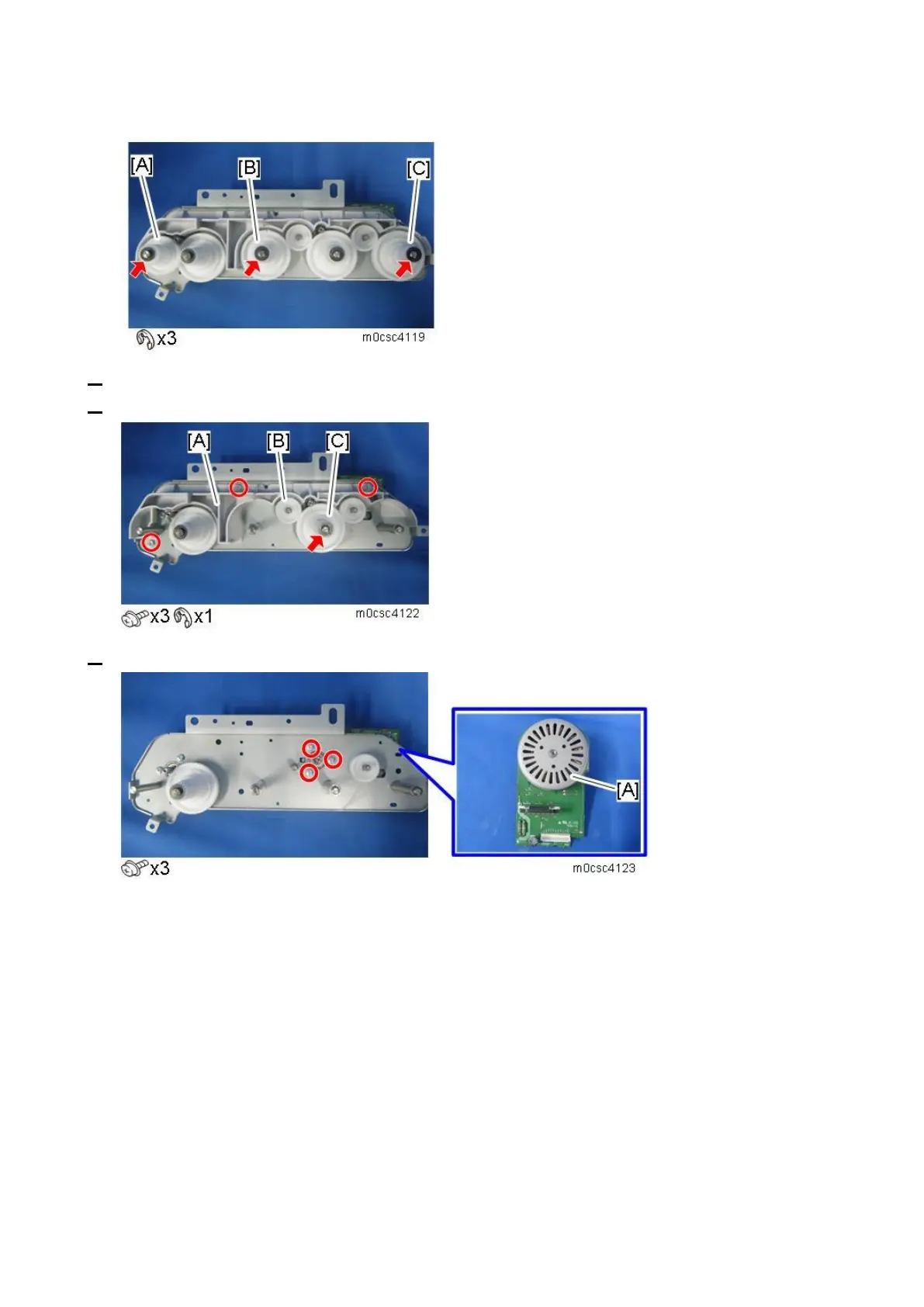

gear [C].
4. Remove the drive unit guide [A].
5. Release the snap ring and remove the idler gear [B] and magenta AIO gear [C].
6. Remove the color drum motor (M1) [A].
