Ricoh SR5090 - Punch Unit

2.Replacement and Adjustment
96
Punch Unit
1. Remove the following covers.
• Rear Upper Cover (Rear Upper Cover, Rear Lower Cover)
• Rear Lower Cover (Rear Upper Cover, Rear Lower Cover)

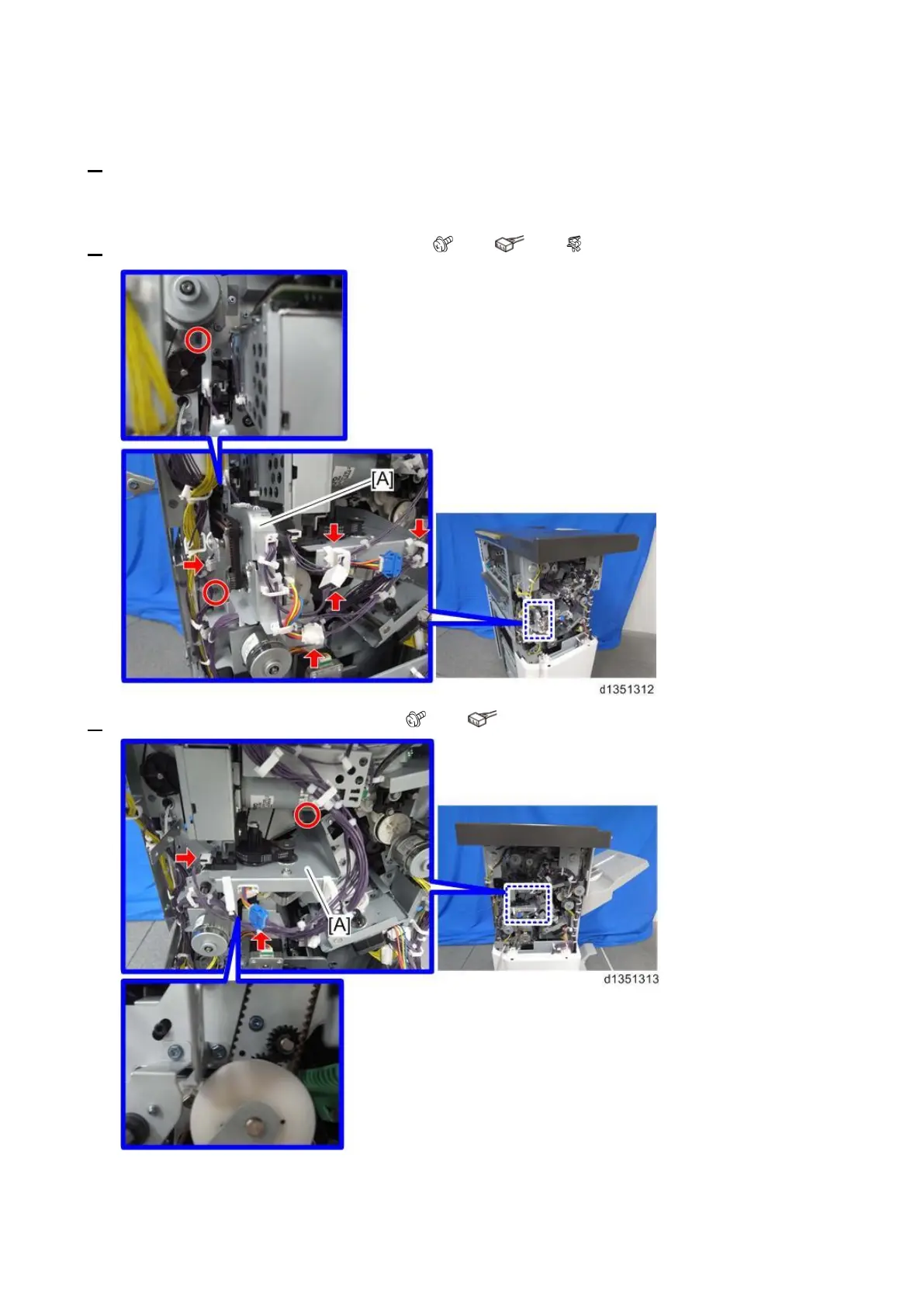

2. Remove the side-to-side detection unit [A] ( x 2, x 3, x 2).
3. Remove the stepper motor bracket [A] ( x 1, x 2)
