Ricoh SR5090 - Exit Motor; Feed-Out Belt Motor

2.Replacement and Adjustment
71

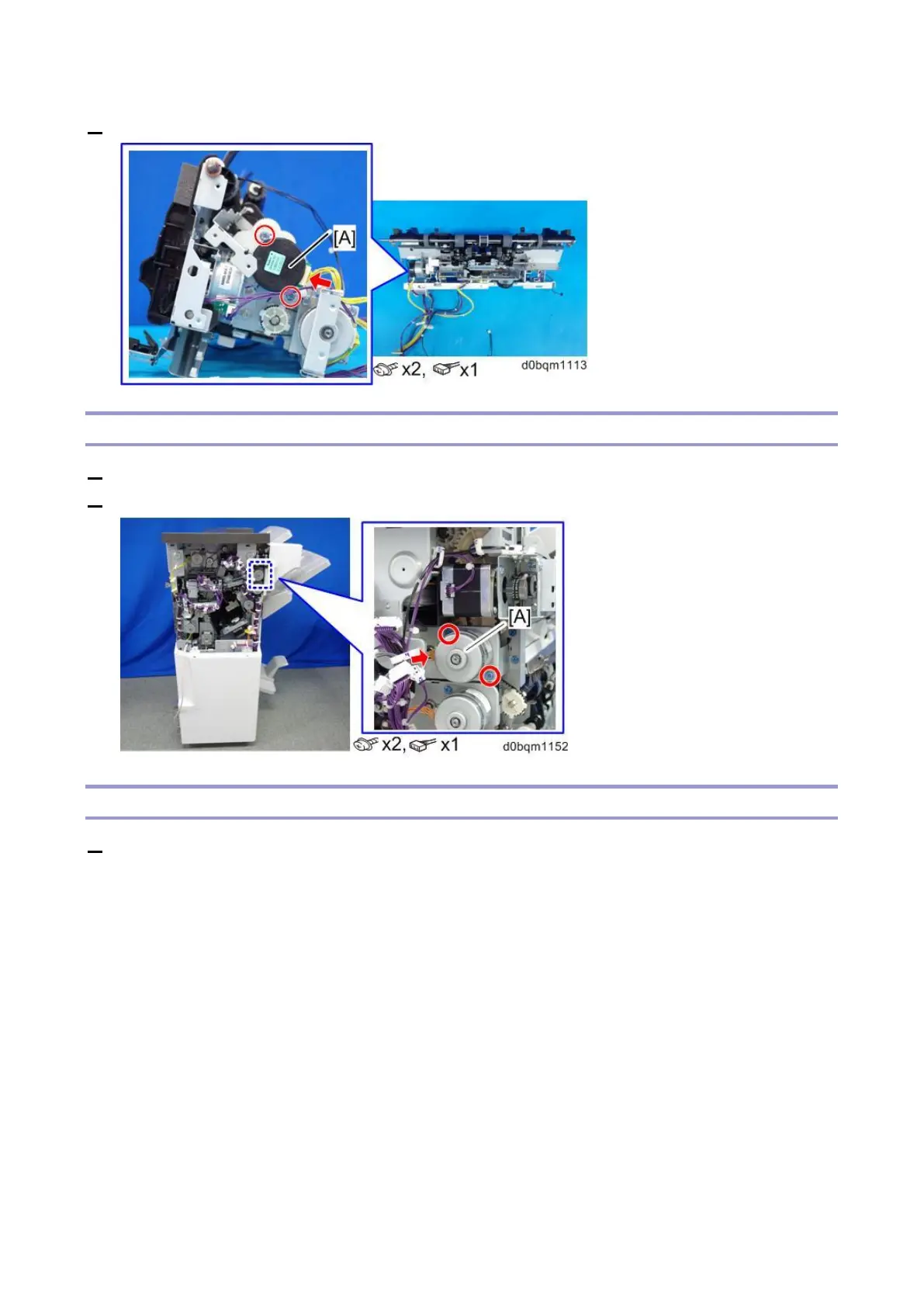

2. Remove the paper stacking holder motor [A].
Exit Motor
1. Remove the rear upper cover (Rear Upper Cover, Rear Lower Cover).
2. Remove the exit motor [A].
Feed-out Belt Motor
1. Remove the corner stapling unit (Corner Stapling Unit).
