1.Detailed Descriptions
29
Shift Tray Movement/ Paper Height Detection/ Tray Full Detection
Shift Tray Movement

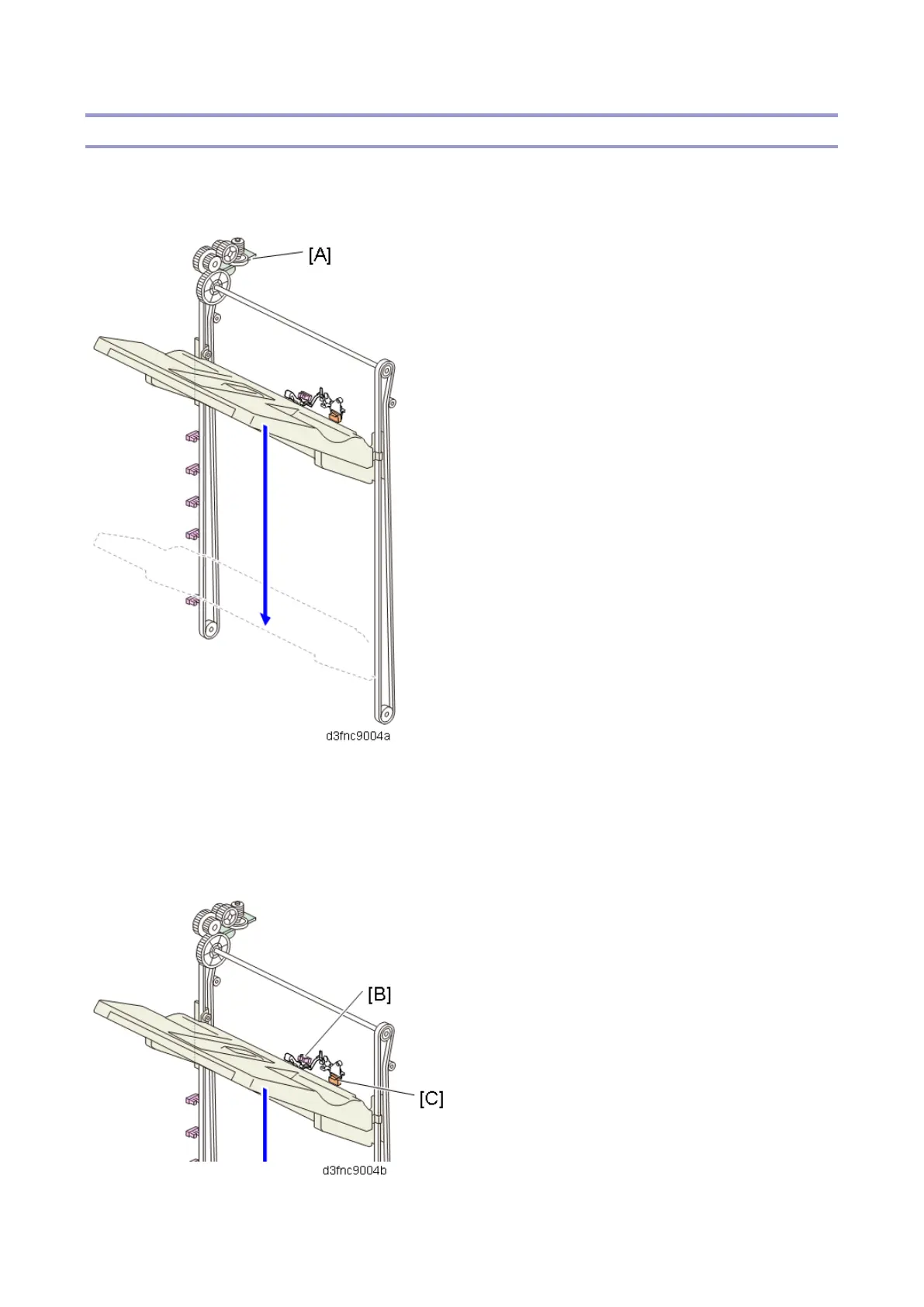

The tray lift motor [A] moves the tray up and down.
Paper Height Detection
The Shift Tray Paper Height Sensor [B] uses an actuator the rise of the tray (without paper). To prevent
the tray from rising too high due to a failure to detect the height, there is an upper tray height limit
switch (interlock switch) [C] to force the tray shift motor to a stop.
