2.Replacement and Adjustment
101

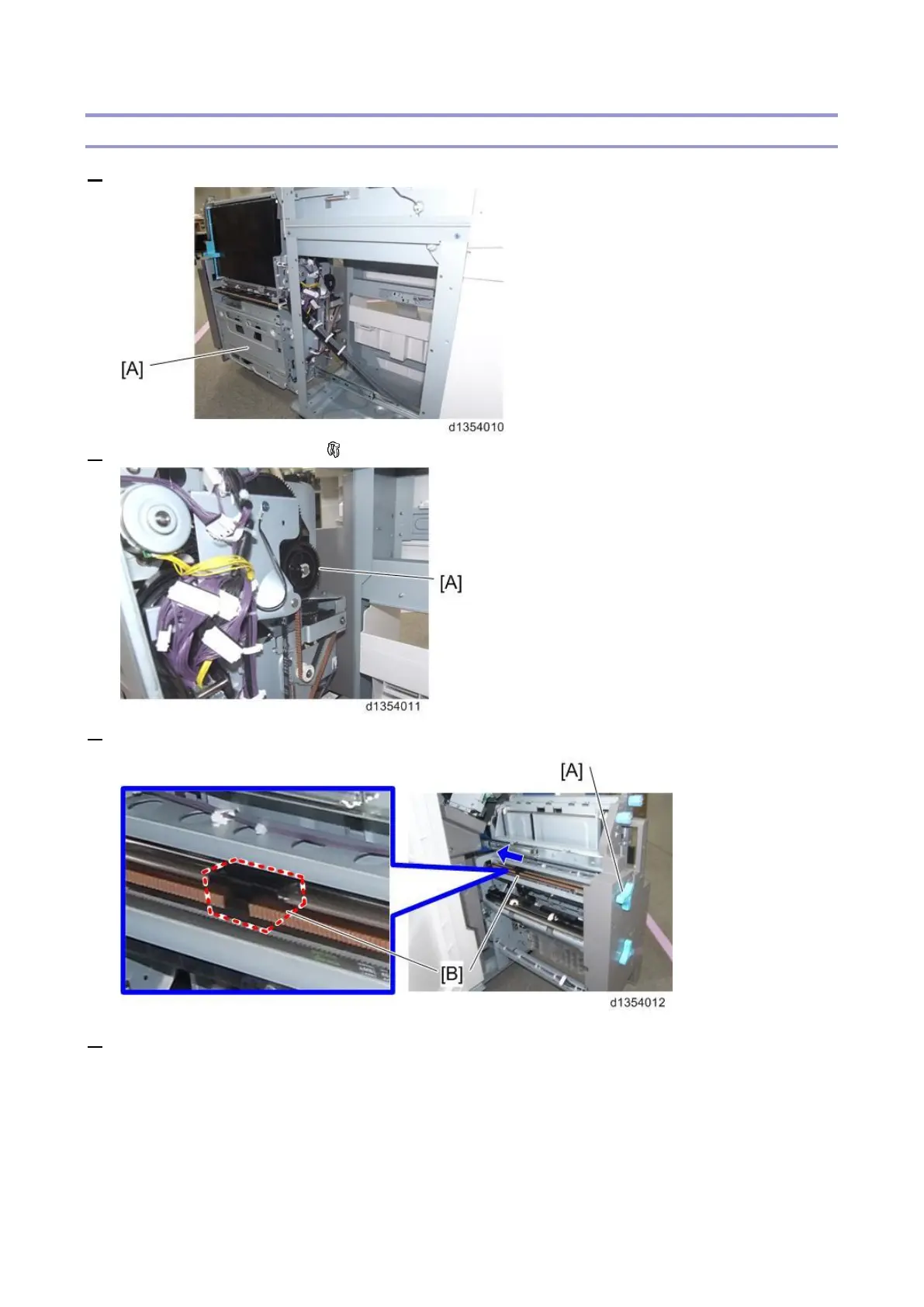

Flat Fold Booklet Unit Home Position Adjustment
1. Pull out the saddle stitch unit [A].
2. Remove the timing gear [A] ( x 1).
3. Turn the knob [A] clockwise to move the flat fold roller unit [B] in the direction of the arrow.
4. Move the flat fold roller unit until the edge of the unit [A] is between the guide lines [B] and [C]
