2.Replacement and Adjustment
55

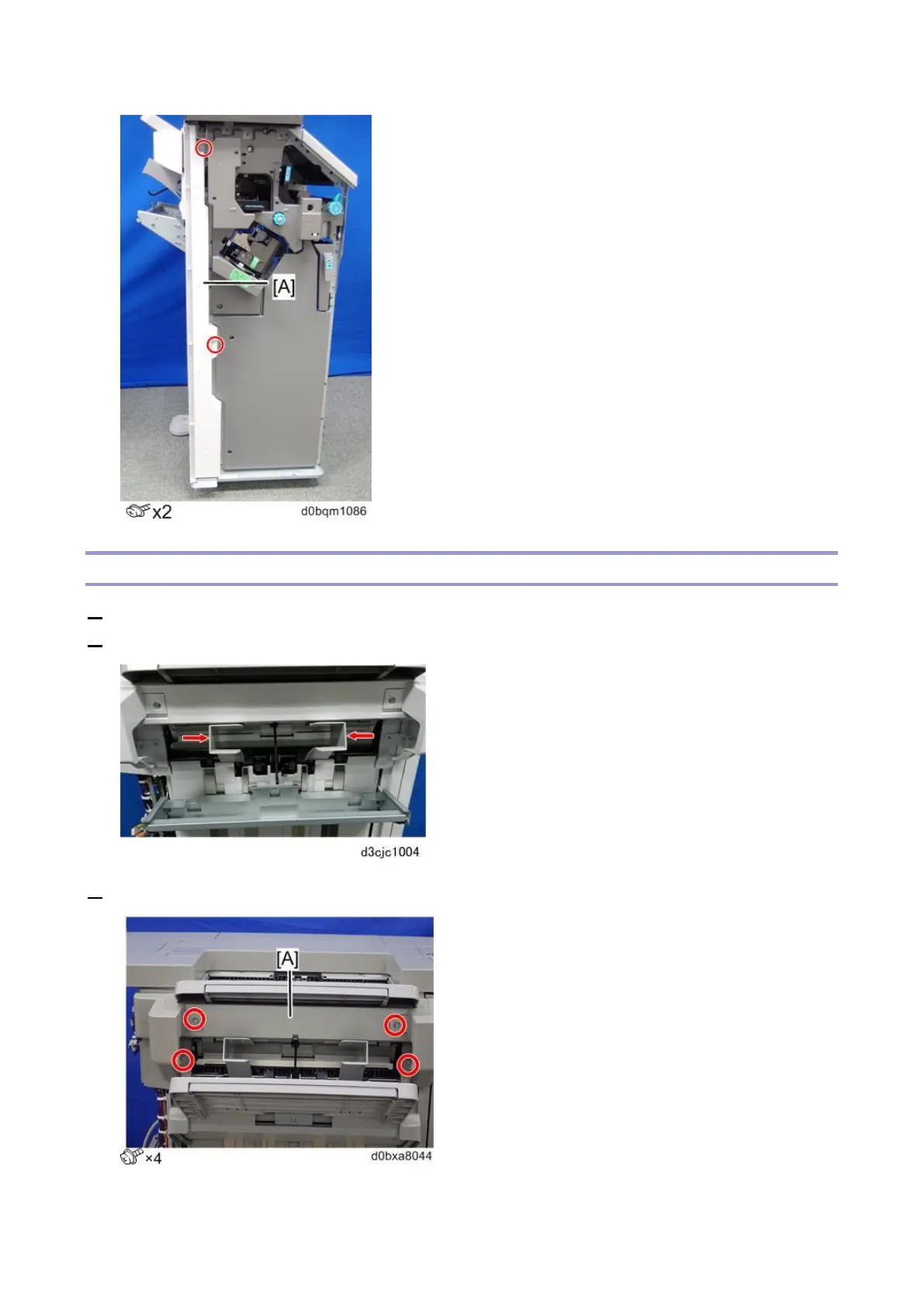

Paper Guide Cover
1. Remove the rear upper cover. (Rear Upper Cover, Rear Lower Cover)
2. Push the guides in to the center.
3. Remove the paper guide cover [A].
