1.Detailed Descriptions
40

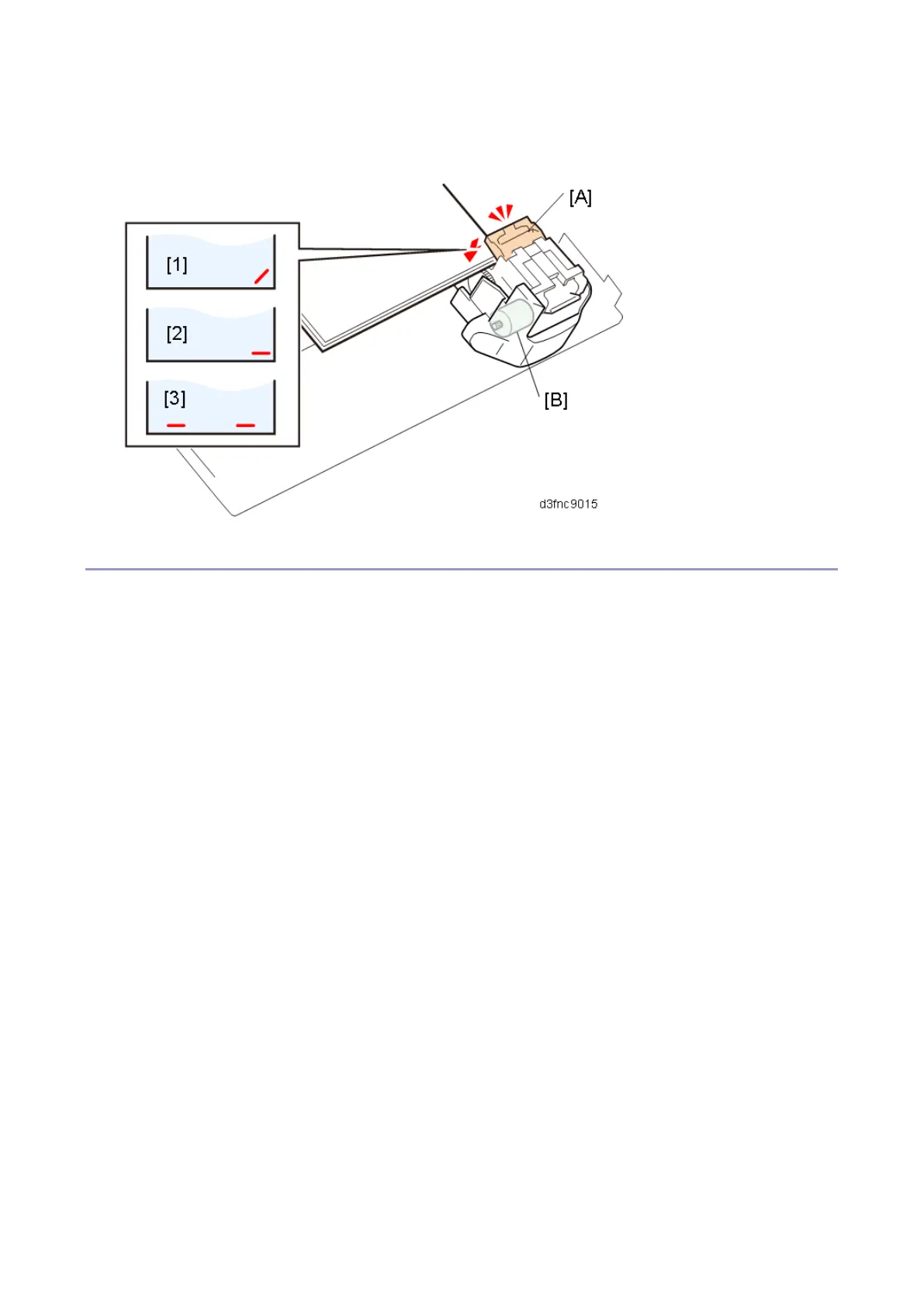

• Horizontal Staple [2]
• Horizontal Staples at 2 points [3]
Feeding-Out
The trailing edge fence [B] moves paper to the correct position for output. The stack feed-out pawl [A]
that is attached to the stack feed-out belt [C] then pushes the paper out. The feed-out belt motor [D]
drives the stack feed-out pawl [A] and the trailing edge fence [B]. After a paper stack is output, both the
trailing edge fence [B] and stack feed-out pawl [A] return to their home positions.
There are two ways of feeding out paper.
1. By pawl, exit roller
This is for small size vertical output (A4, LT, B4 SEF).
Paper is fed out as described above.
2. By exit roller
This is for horizontal output of A4, LT, B5 LEF
Only the exit roller is used, without using the trailing edge fence and the stack feed-out pawl.
For Large Sizes (A3, B4, LG, DLT)
• 1 to 10 sheets: feed out by exit roller exit
