Points to Note When Detaching/ Reattaching/ Replacing the End Fence
There is a harness routed beneath the end fence. Take note of the following:
• If the cable clamp for securing the harness has come off the end fence, reattach it.
• Make sure there is no slack left in the harness; otherwise, the harness may come into contact with
the machine’s roller shaft and become worn out.

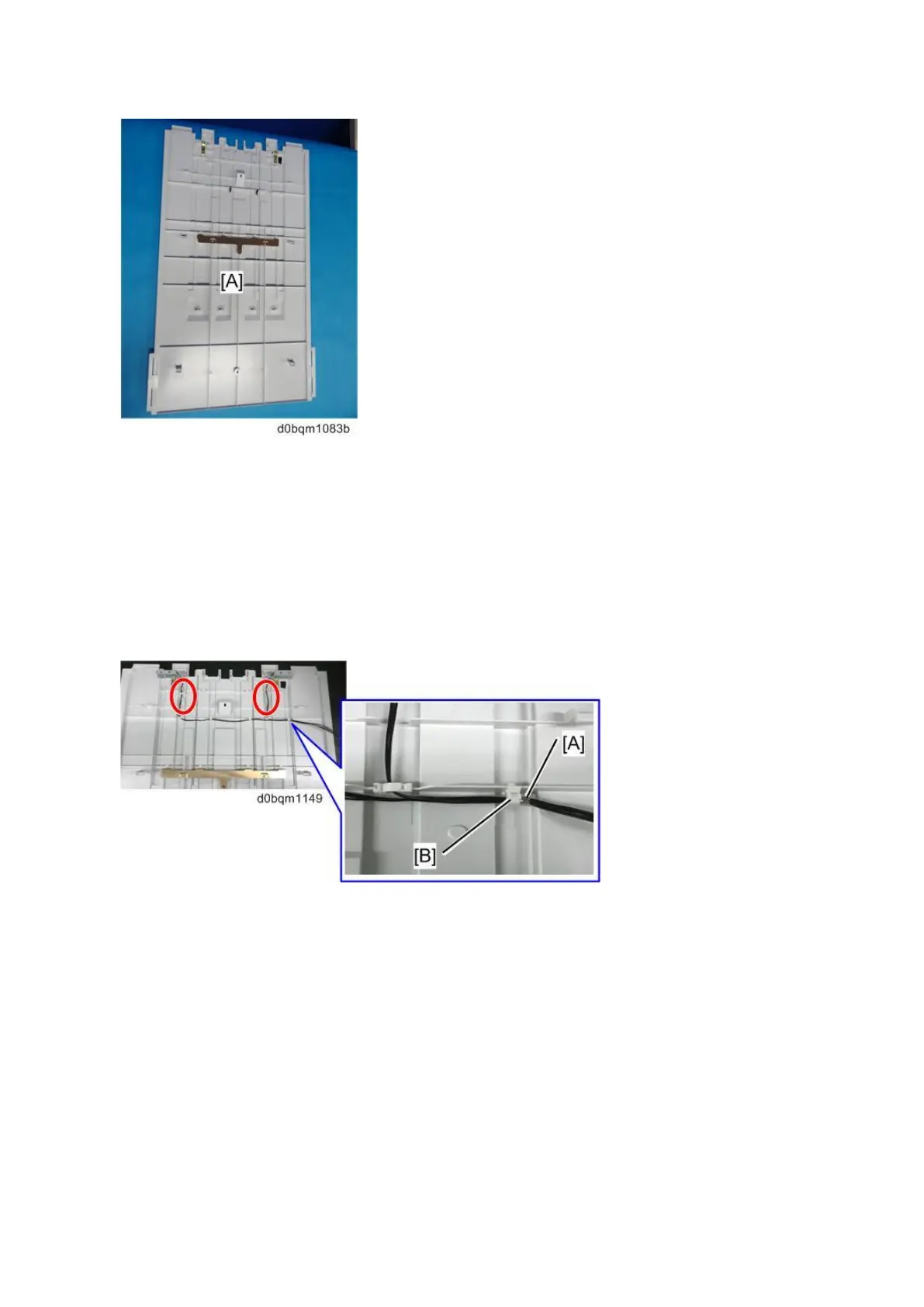

• Make sure not to leave any slack, especially at the parts framed in red as shown. To prevent slack,
make sure that the cable tie [A] on the harness is located at the right side of the clamp [B].
