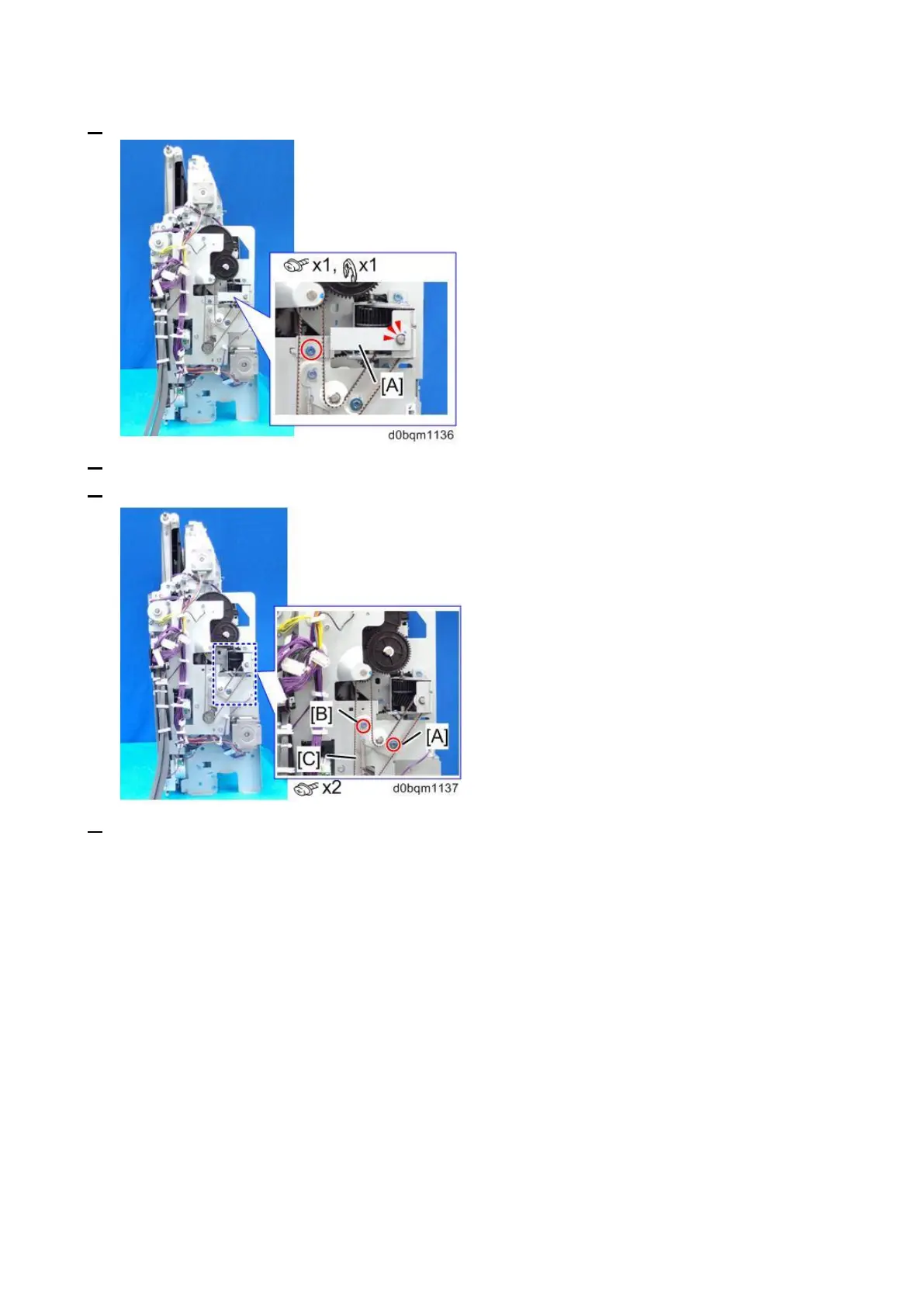

2. Remove the fixing bracket [A] on the saddle stitch unit.
3. Remove the screw [A] shown in the photo below.
4. Loosen the screw [B] to loosen the press fold motor belt [C].
5. Remove the clamps (indicated by red arrows) and connectors (pink arrows) from the press fold
motor unit.
