2.Replacement and Adjustment
88

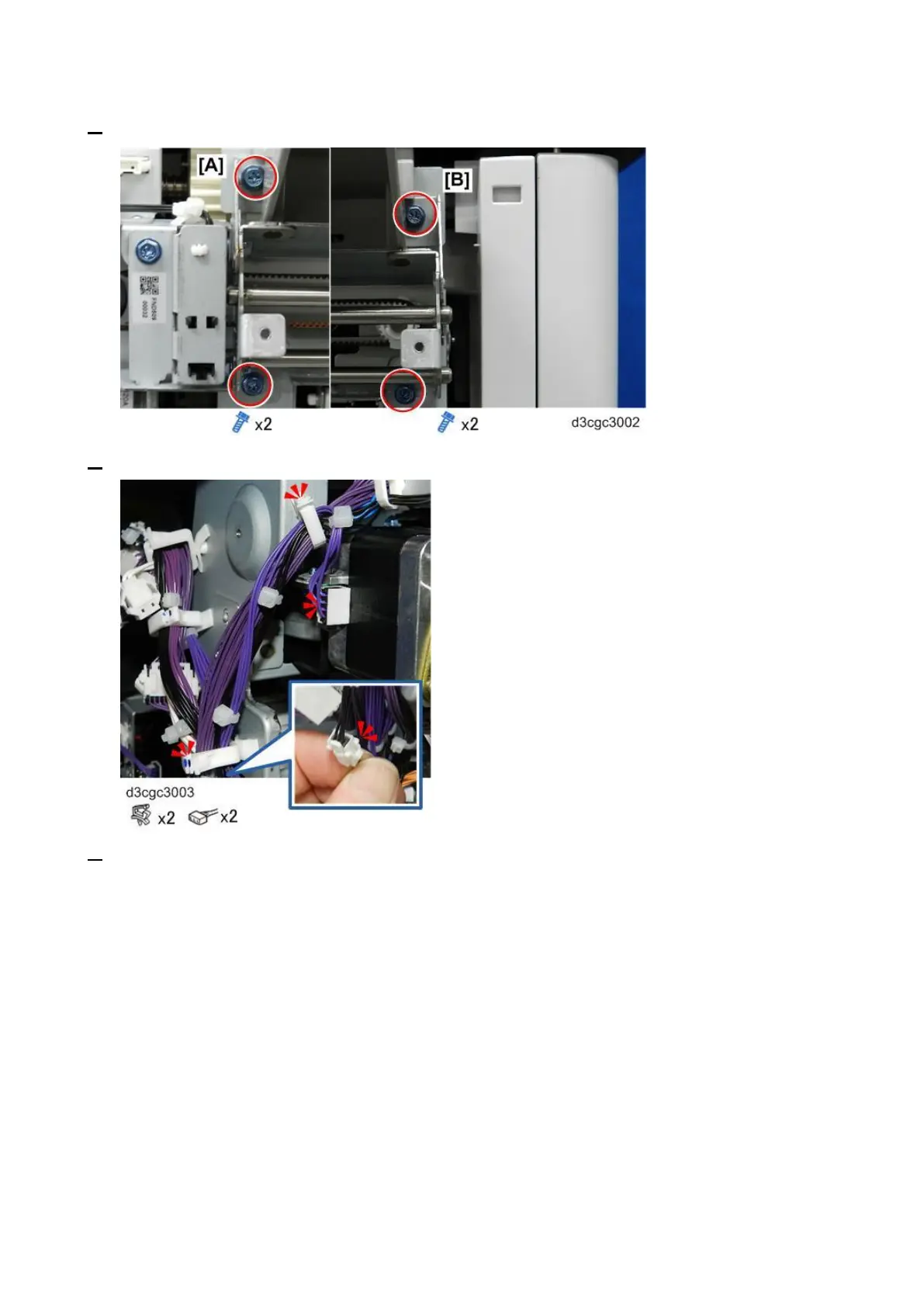

6. Disconnect the front end of the paper guide unit bracket [B].
7. At the rear, open the clamps and disconnect the motor and sensor harnesses.
8. Lay the unit [A] on flat clean surface so you can see the paper guide motor [1] and paper guide
