Ricoh SR5090 - Page 94

2.Replacement and Adjustment
90

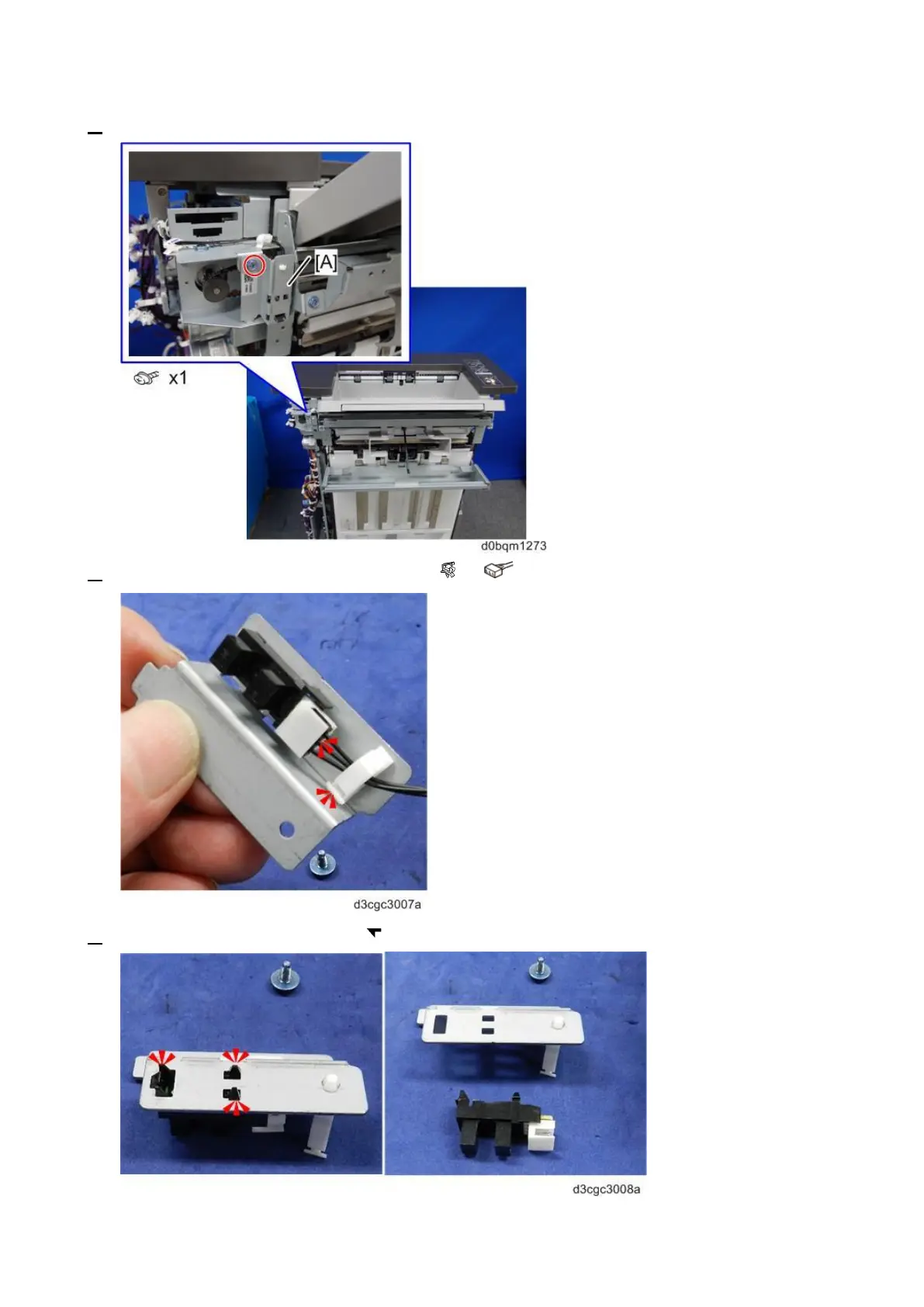

2. Remove the bracket [A] with the paper guide HP sensor.
3. Open the clamp and disconnect the sensor ( x1, x1).
4. Separate the sensor and bracket ( x3).
