3.5 Technical specicaons
Mechanical
Dimensions (WxHxD)
RW45 - RW800: 490 mm x 90 mm x 200 mm
RW1000 - RW2000: 503.5 mm x 117 mm x 200 mm
Weight 3.1 - 5.4 kg
Ambient
Protecon rang IP54
Ambient temperature 0 to +60 °C (+32 to +140 °F)
Maximum relave humidity 95%

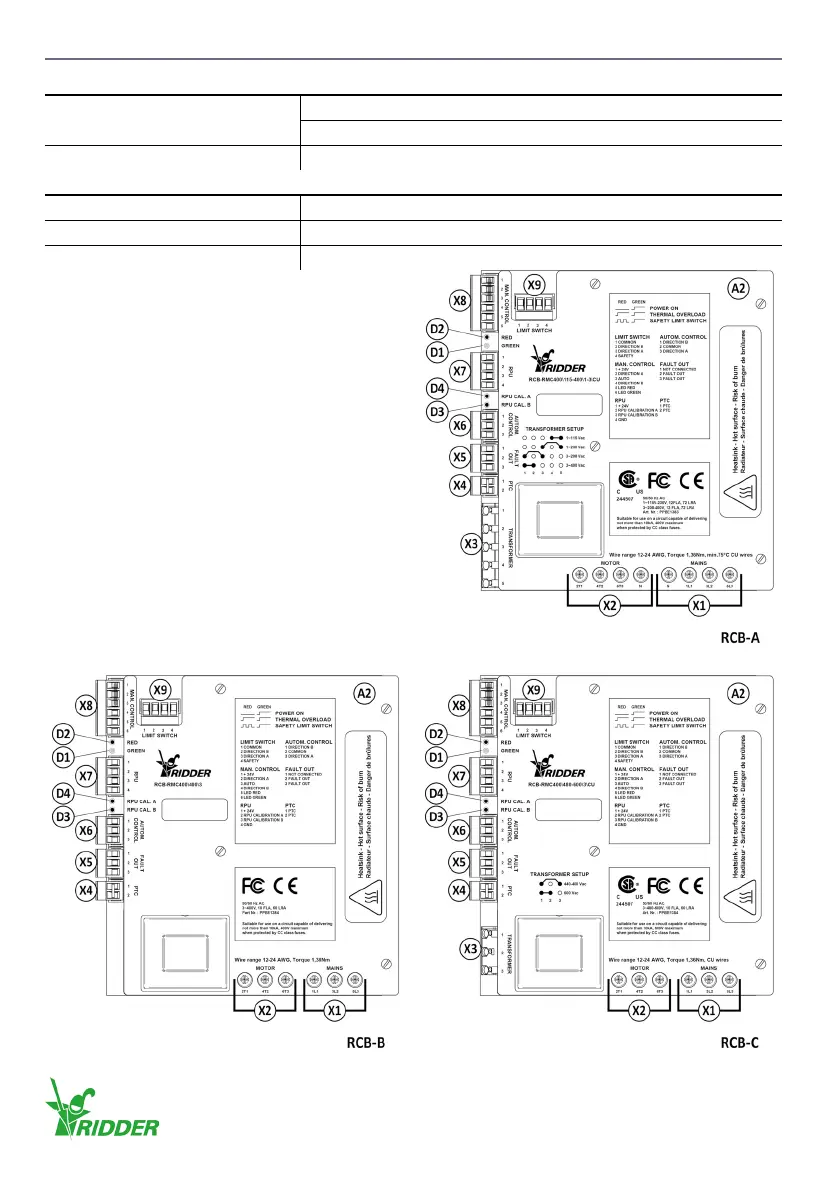

The three types of control boards (RCB) that follow
are available for the RLL400 control-unit.
RCB-A (Type A):
50/60 Hz AC
1~ 115V-230 V, 12FLA, 72 LRA
3~ 208-400 V, 12 FLA, 72 LRA
RCB-B (Type B):
50/60 Hz AC
3~ 400 V, 10 FLA, 60 LRA
RCB-C (Type C):
50/60 Hz AC
3~ 440-600 V, 10 FLA, 60 LRA
Refer to the table that follows for abbreviaons,
technical specicaons and descripons of all
connecons.
