Riello UPS Multi Sentry 160 MST User Manual

‐63‐

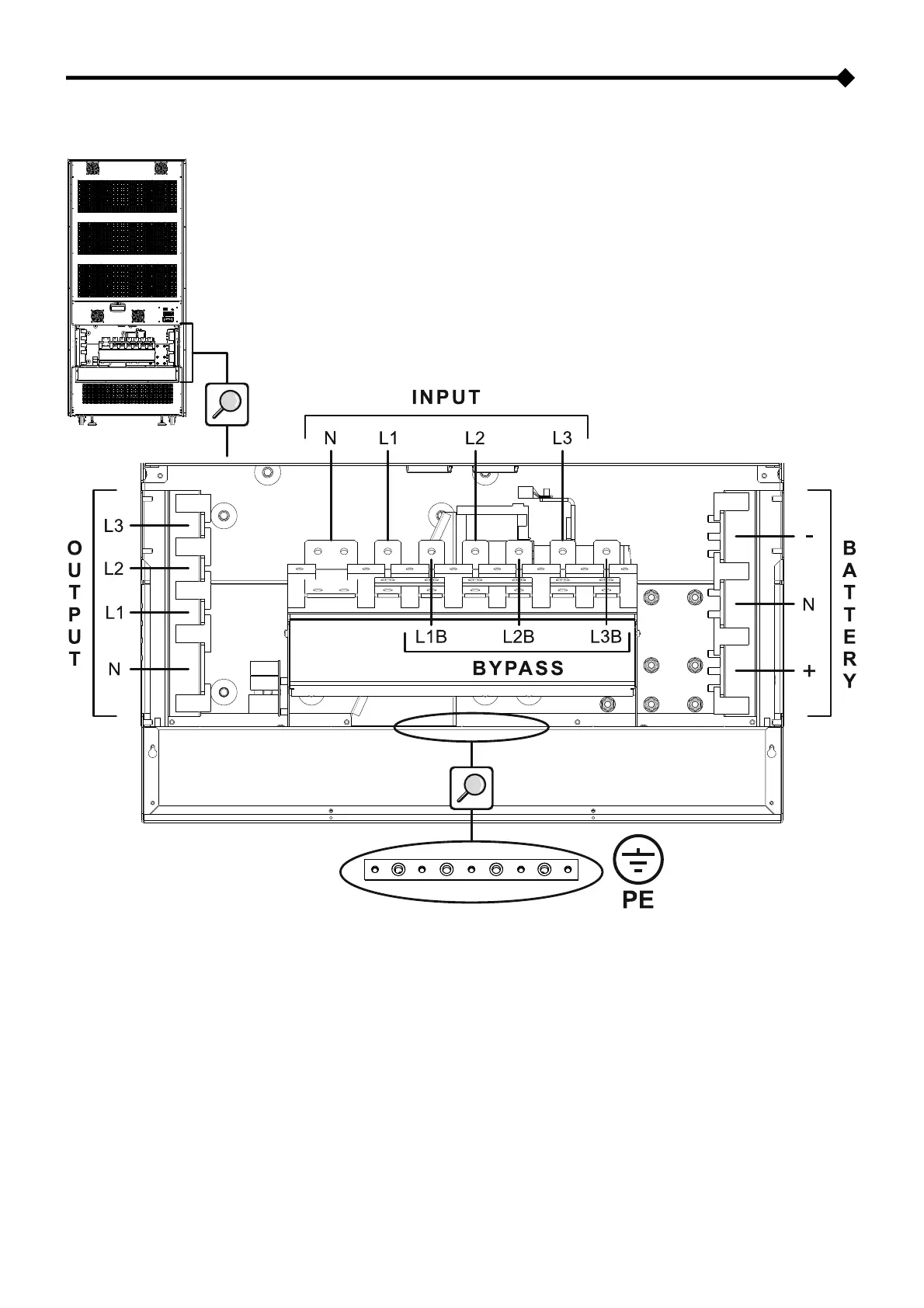

UPS CONNECTIONS VIEW
Remove the IN/OUT access panel to access the UPS terminal board:
BATTERY (+ - N)
Power connections: BATTERY (+) , (-) and NEUTRAL
INPUT (L1 L2 L3 N)
Power connections: INPUT PHASES AND NEUTRAL
BYPASS (L1B L2B L3B)
Power connections: SEPARATE BYPASS PHASES
OUTPUT (L1 L2 L3 N)
Power connections: OUTPUT PHASES AND NEUTRAL
PE
Power connections: GROUND
