‐87‐
In addition, the user can switch the UPS on/Off directly from the control panel, consult network, output, battery measurements,
etc.
(1)
and make the main machine settings.
The display is sub-divided into four main zones, each with its own specific role.

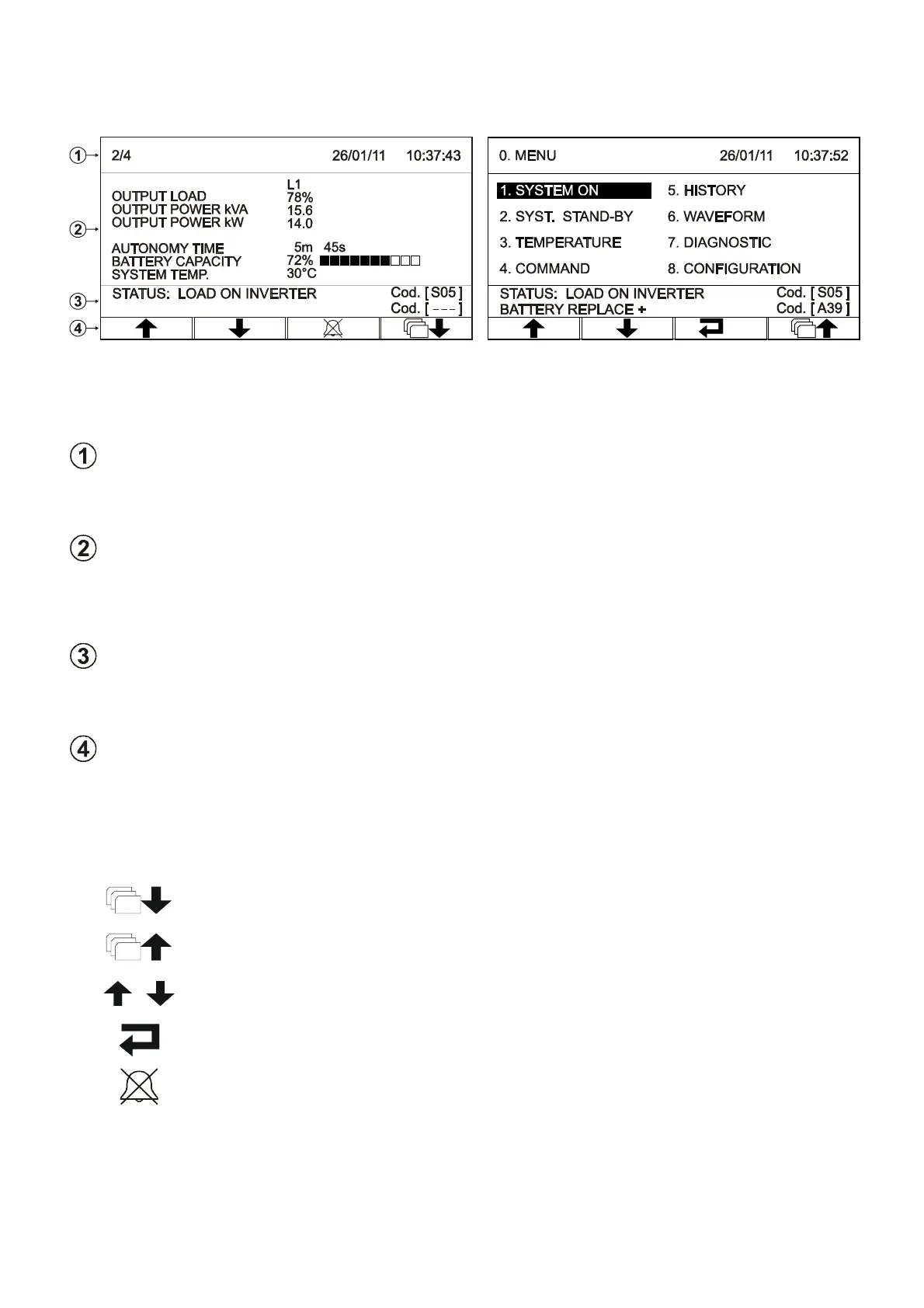

Graphic display sample screens
(screens for demonstration purposes; situations depicted may differ from reality)
GENERAL INFORMATION
Part of the display where the set date and hour are permanently shown and,
depending on the screen, the page number or title of the menu that is active in that
moment.
DATA VIEWING / MENU
NAVIGATION
Main part of the display reserved for viewing of UPS measurements (constantly
updated in real time) as well as to the consultation of various menus that can be
selected by the user by means of the related function keys. Once the desired menu
has been selected, this part of the display will show one or more pages containing all
data relative to the selected menu.
UPS STATUS /
ERRORS - FAULTS
UPS operation status display area.
The first row is always active and constantly displays UPS status in real time.The
second is activated only in the presence of a UPS error and/or fault and shows the
type of detected error/fault.
A code corresponding to the event in progress is shown to the right of each row.
KEYS FUNCTION
Area divided into four boxes, each relative to the underlying function key. Depending
on the menu that is active in that moment, the display shows the function of the
corresponding key in the related box.
Key symbols
To enter into the main menu
To return to the previous menu or display
To scroll the various selectable items inside a menu or to pass from one page to another during data
display
To confirm selection
To temporarily silence the buzzer (keep press for at least 0.5 sec.).
To cancel a programmed start-up/shutdown(keep press for at least 2 sec.).
(1)
The accuracy of the measurements is: 1% for voltage measurements, 3% for current measurements,0.1% for frequency
measurements.
The indication of remaining battery time is an ESTIMATE, and is not to be considered an instrument of absolute measurement.
