Rigol DM3000 Series User Manual

RIGOL
3-6 © Copyright RIGOL Technologies, Inc. 2007.
User Manual for DM3000 Series

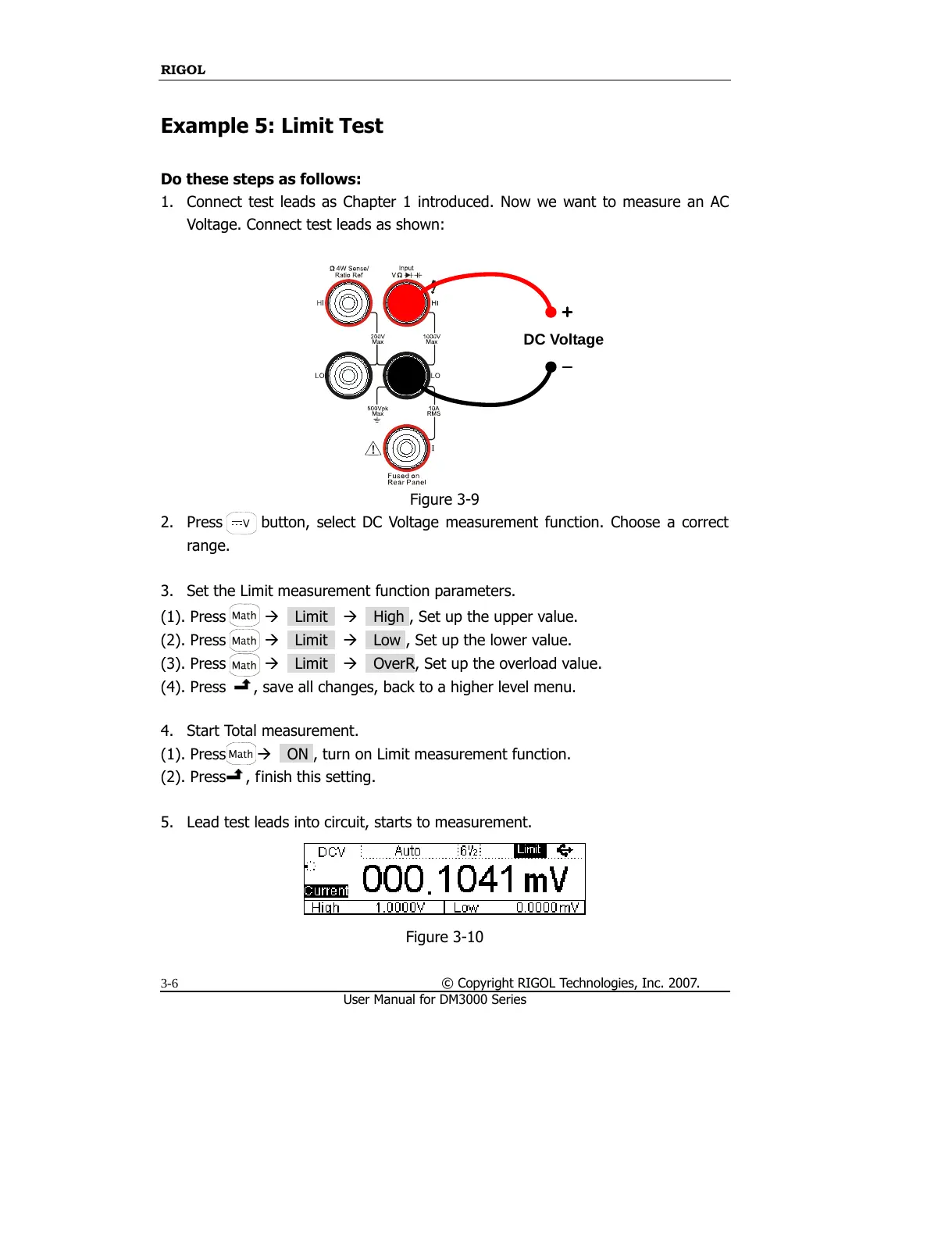

Example 5: Limit Test
Do these steps as follows:
1. Connect test leads as Chapter 1 introduced. Now we want to measure an AC
Voltage. Connect test leads as shown:
Figure 3-9
2. Press button, select DC Voltage measurement function. Choose a correct
range.
3. Set the Limit measurement function parameters.
(1). Press Æ Limit Æ High , Set up the upper value.
(2). Press Æ Limit Æ Low , Set up the lower value.
(3). Press Æ Limit Æ OverR, Set up the overload value.
(4). Press
, save all changes, back to a higher level menu.
4. Start Total measurement.
(1). Press Æ ON , turn on Limit measurement function.
(2). Press
, finish this setting.
5. Lead test leads into circuit, starts to measurement.
Figure 3-10
DC Voltage
