User Manual for DM3000 Series
To Measure AC Current
In view of AC current measurement function, the following part demonstrated how to
link the measurement connection and how to choose measurement functions. The
following practice will gradually guide you to be familiar with the AC Current
measurement technique.

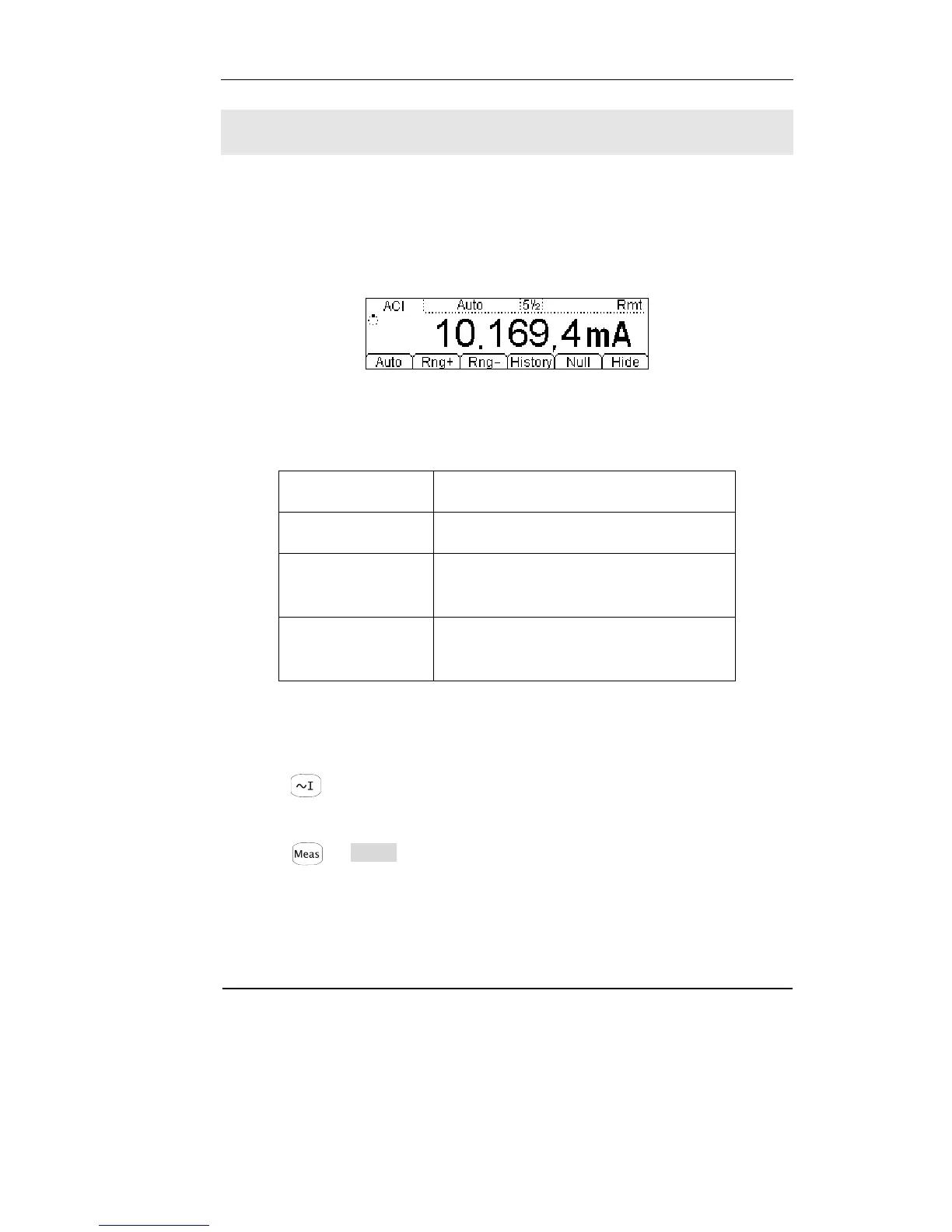

Figure 1-16
AC Current measurement data interface
Table 1-4 AC Current measurement characteristics
Five Range 20mA, 200mA, 1A, 10A
Max Resolution 100nA
Import Protection
10A, 250V Current Input Fuse on rear
panel
Configurable
Parameters
Range, Null value
Basic measurement:
1. Connect test leads as Figure 1-17 shown. Red test lead connects the HI Terminal,
Black test lead connects the LO Terminal.
2. Press to select the DC Current measurement function.
3. According to the current measuring scope, choose the correct range.
4. Setup the DC impedance.
Press Æ Filter , to setup the AC Filter Bandwidth. Default value of the AC
Filter Bandwidth will be “Mid”(Middle), this parameter had been setup, and the users
may carry on the AC Voltage measurement directly without modification.
7. Set the Null setting value
Null computing will be an option operation, could be setup in accordance with
