User Manual for DM3000 Series
To Check Diodes
In view of Check Diodes function, the following part demonstrated how to link the
measurement connection and how to choose measurement functions. The following
practice will gradually guide you to be familiar with the Check Diodes technique.

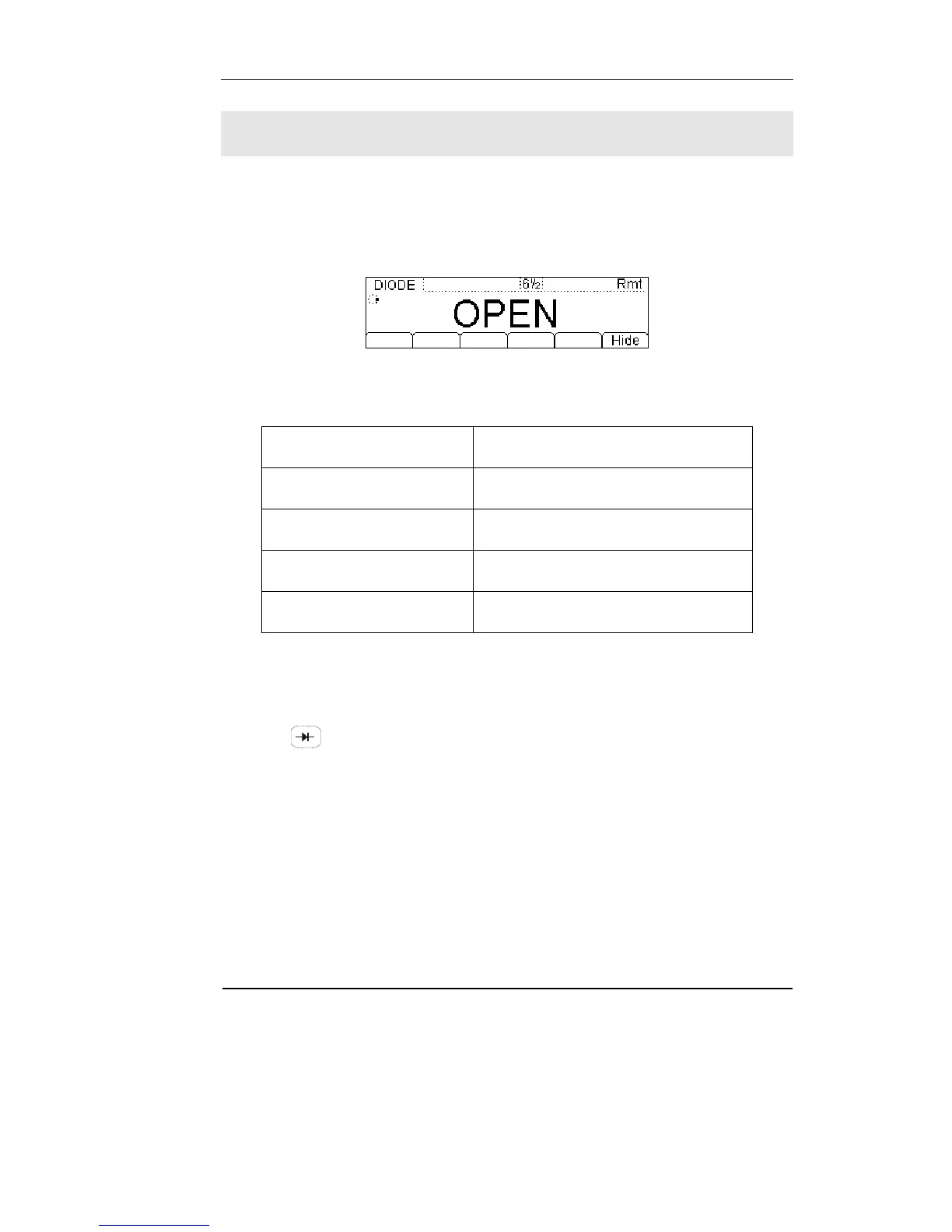

Figure 1-29
Table 1-9 Check Diodes characteristics
Tests Current 1mA
Max Resolution Range fixed at 2VDC
Open-circuit Voltage <5V
Import Protection 1000V (HI Terminal)
Configurable Parameters 0.3V≤V
measured
≤2V
Basic measurement:
1. Connect test leads as Figure 1-30 shown. Red test lead connects the HI Terminal,
Black test lead connects the LO Terminal.
2. Press to select the Check Diodes.
