To Measure Arbitrary Sensor
To set an arbitrary sensor, you will need to set the sensor name, sensor type, sensor
physical unit, sensor reference data, and arithmetic.

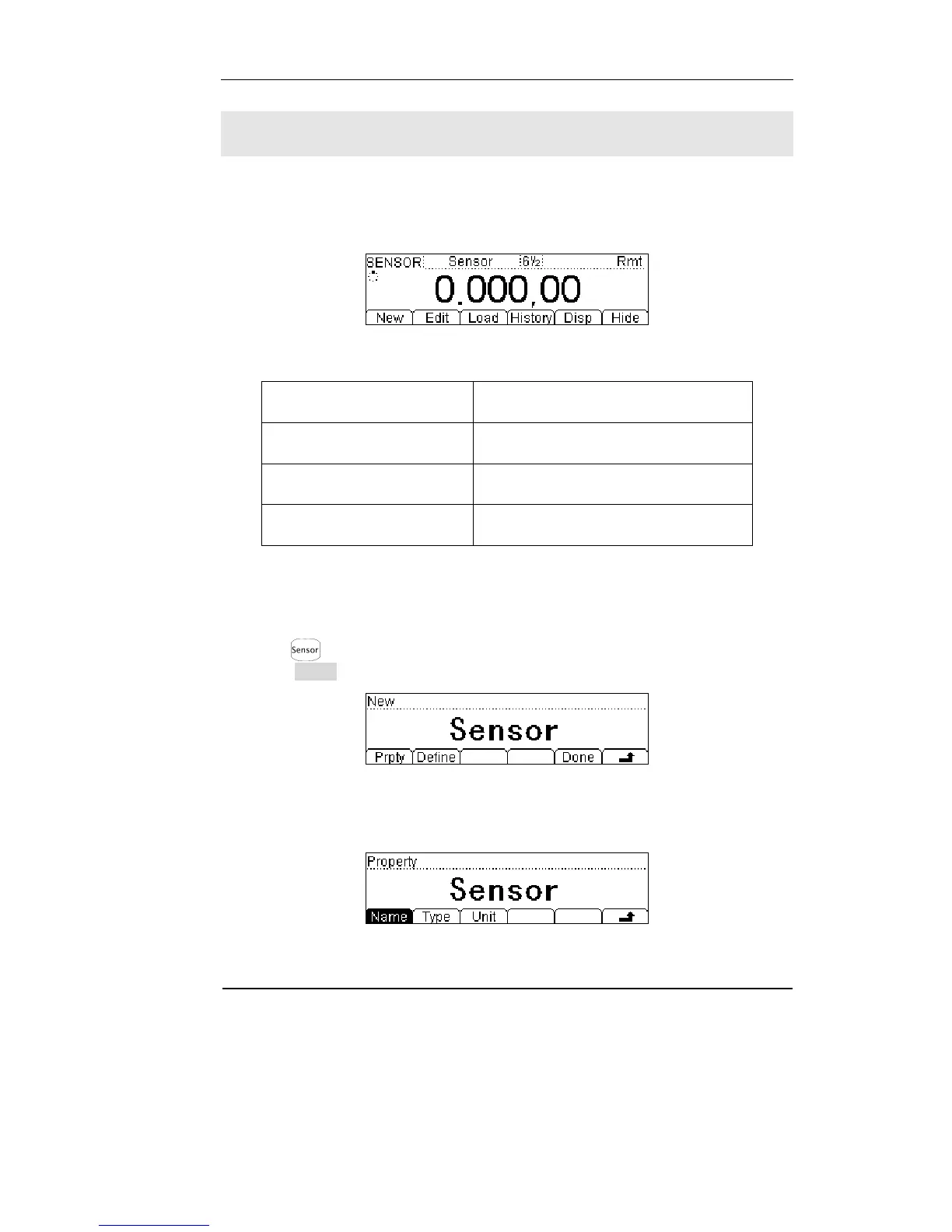

Figure 1-37
Table 1-11 Period Test characteristics
New Newly built sensor reference data file
Edit Edit a sensor reference data file
Load Load a sensor reference data file
Display Set display mode
Basic measurement:
1. Connect test leads as Figure 1-48, 1-49 shown. Red test leads connect the HI
Terminal, Black test leads connect the LO Terminal.
2. Press to select the Sensor function.
3. Press New ,enter the newly- built sensor reference data file interface.
Figure 1-38
(1). In New function interface, you are allowed to edit the sensor Name, sensor Type
and physical value Unit of the sensor.
Figure 1-39
